Large cold planer M100E

for asphaltfor concrete

Product description

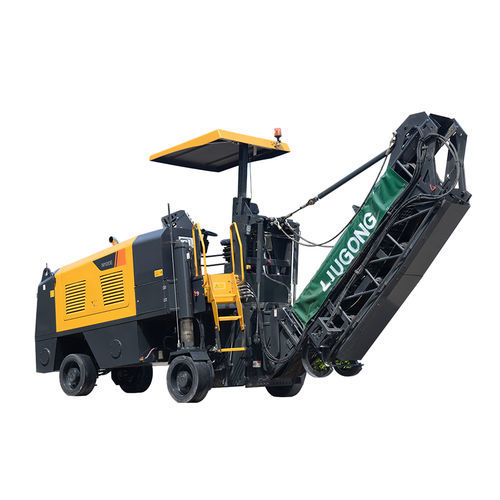

• Liugong M100E 1-meter road milling machine designed for energy-efficient, low-fuel road maintenance. Intended for removal or scarifying of asphalt and concrete surface layers on highways, urban roads and airports. Effective at eliminating surface distresses such as bumps, waves, raveling, cracks and rutting. High productivity, straightforward operation, simple milling depth control, small turning radius, good manoeuvrability and proven reliability for maintenance tasks.

Key specifications
Operating weight: 14600 kg
Milling width: 1000 mm
Milling depth: 0~220 mm

Product specifications (table)
Operating weight: 14600 kg
Milling depth: 0~220 mm
Number of Tools: 72/76/82
Rated power: 154 kW (207 hp / 209 ps) @ 2,200 rpm
Travel speed: 8 km/h
Gradeability: >20%
Hydraulic Fluid Tank: 120 L
Shipping Length: 10360 mm
Shipping height: 3700 mm
Milling width: 1000 mm
Tool Spacing: 18mm/18mm/15mm
Model: Cummins QSB5.9
Emission: China III
Milling Speed: 2 km/h
Fuel Tank: 360 L
Water tank: 800 L
Shipping width: 2400 mm

Note
For reference only.

Features / Technical specifications

• Operating weight: 14600 kg
• Milling width: 1000 mm
• Milling depth: 0~220 mm
• Number of Tools: 72/76/82
• Rated power: 154 kW (207 hp / 209 ps) @ 2,200 rpm
• Travel speed: 8 km/h
• Milling Speed: 2 km/h
• Gradeability: >20%
• Hydraulic Fluid Tank capacity: 120 L
• Fuel Tank capacity: 360 L
• Water tank capacity: 800 L
• Tool Spacing: 18mm/18mm/15mm
• Engine model: Cummins QSB5.9
• Emission standard: China III
• Shipping dimensions: Length 10360 mm, Width 2400 mm, Height 3700 mm
