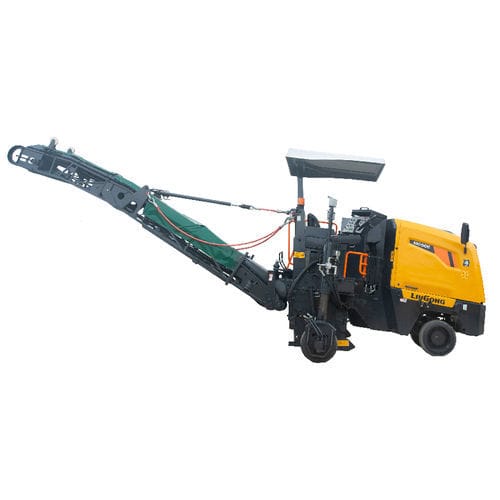

Large cold planer M050E

for asphaltfor concrete

Product overview

• Liugong M050E 0.5-meter road milling machine designed for efficient removal and stripping of asphalt or cement surface layers on high-grade highways, urban roads and airports. Suited to remove surface defects including bumps, corrugation, mesh patterns, cracks and ruts. The machine offers simple milling depth control, compact turning radius, good maneuverability and high reliability for road maintenance tasks.

Key specifications (summary)
Operating weight: 6,400/7,600 kg
Milling width: 500 mm
Milling depth: 0-180 mm

Technical details (table)
Operating weight: 6,400/7,600 (Including Conveyor Frame) kg
Milling depth: 0-180 mm
Number of Tools: 54
Rated power: 118 kW (158 hp / 160 ps) @ 2,200 rpm
Travel speed: 0-8.2 km/h
Gradeability: 60%
Hydraulic Fluid Tank: 80 L
Shipping Length: 6,100 mm
Shipping height: 2,250 (without Cab) mm
Milling width: 500 mm
Tool Spacing: 15 mm
Model: SC4H160.5G3
Emission: Stage III
Milling Speed: 0-2.2 km/h
Fuel Tank: 160 L
Water tank: 320 L
Shipping width: 2,130 mm

Technical characteristics

• Operating weight: 6,400/7,600 (Including Conveyor Frame) kg
• Milling width: 500 mm
• Milling depth: 0-180 mm
• Number of Tools: 54
• Rated power: 118 kW (158 hp / 160 ps) @ 2,200 rpm
• Travel speed: 0-8.2 km/h
• Gradeability: 60%
• Hydraulic Fluid Tank: 80 L
• Shipping Length: 6,100 mm
• Shipping height: 2,250 (without Cab) mm
• Tool Spacing: 15 mm
• Model: SC4H160.5G3
• Emission: Stage III
• Milling Speed: 0-2.2 km/h
• Fuel Tank: 160 L
• Water tank: 320 L
• Shipping width: 2,130 mm
