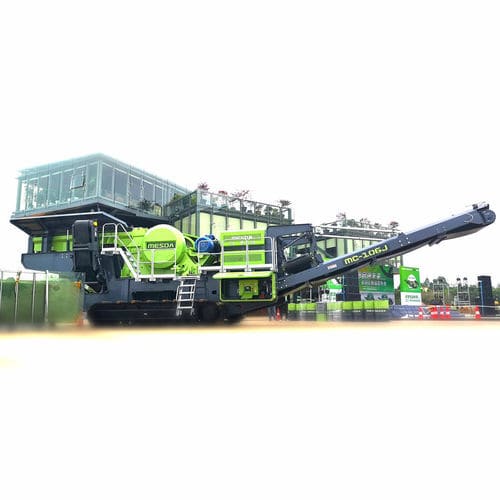

Jaw crusher MC-106J

mobilefor all materialscrawler

Simple mechanical structure. Excellent design Excellent industrial design Powerful function Can crush almost any material Wide usage scenario More in line with working condition TECHNICAL PARAMETERS PROJECT - NAME - MC-106J - COMMENT Feed height (mm) - 4100 - Hopper volume (m³) - 5 - Vibrating feeder - Length × width（mm) - 4000×1040 - Power （KW） - 3.7×2 - Jaw crusher - Jaw Crusher - J-106 - Input size Max（mm） - 700 - Weight（t） - 18 - Power（KW） - 110-6 - Main conveyor - Discharge height(mm) - 3200 - Length x width（mm） - 13000×B1200 - Power（KW） - 15 - Extend conveyor - Discharge Height (mm) - 2100 - Length x Width（mm） - 3600×B500 - Power（KW） - 3 - Iron remover (options) - Length × Width（mm） - 1670 × B800 - Power（KW） - 3 - Transportation dimensions(L × W × H/m) - 16.24×3.35×3.78 - Work size（L × W × H/m） - 16.30 × 4.80 × 4.10 - Description： 1. The parameter in brackets is the onboard generator scheme. 2. Crusher processing capacity is related to stone hardness, feed size, and discharge size. 3. Basic configuration：manual control 、wireless remote control、Automatic feeding system. 4. Options：side conveyor belt 、iron remover 、water spraying system.
