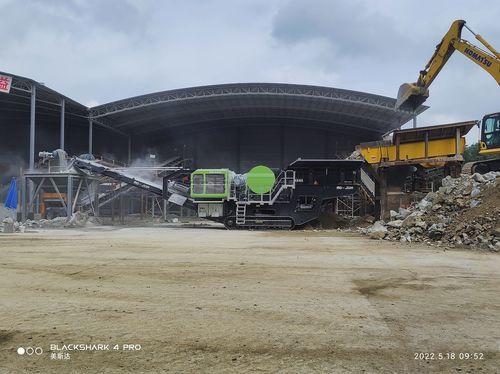

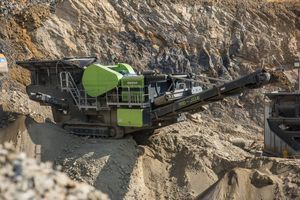

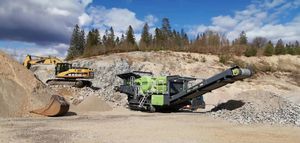

Hydraulic jaw crusher J11Hmobileprimaryhigh-capacity
Add to favorites
Compare this product
Characteristics
- Technology
- hydraulic jaw
- Mobility
- mobile
- Other characteristics
- high-capacity, primary, for mineral material, for building materials
- Capacity
Min.: 0 kg/h
(0 lb/h)Max.: 520,000 kg/h
(1,146,403.8 lb/h)- Motor power
353 kW
(479.95 hp)- Opening height
410 cm
(161.4 in)- Opening lenght
64 cm
(25.2 in)- Weight
50,000 kg
(110,231.13 lb)
Description
MAIN FEATURES
TECHNICAL PARAMETERS
APPLICATIONS & BENEFITS
- Hydraulic drive and modular design for simplified operation and maintenance
- Large feed opening (max 640 mm) with high crushing capacity up to 520 t/h
- On-board engine 353 kW and total crushing power 158 kW
- Mobile chassis with transport and working dimensions optimized for site relocation (overall weight 50 t)
TECHNICAL PARAMETERS
- Model: J11H
- Drive mode: Hydraulic
- Total crushing power: 158 kW
- Engine power: 353 kW
- Feeding capacity: not specified
- Max input size: 640 mm
- Feeding height: 4100 mm
- Crushing capacity: up to 520 t/h
- Overall weight: 50 t
- Transportation dimensions (L×W×H): 16660 × 3000 × 3800 mm
- Working dimensions (L×W×H): 16140 × 6600 × 4150 mm
APPLICATIONS & BENEFITS
- Designed for primary crushing in quarries, mining and construction material recycling
- Modular layout simplifies transport, on-site assembly and maintenance
- Suitable for operations requiring large feed handling and high throughput
