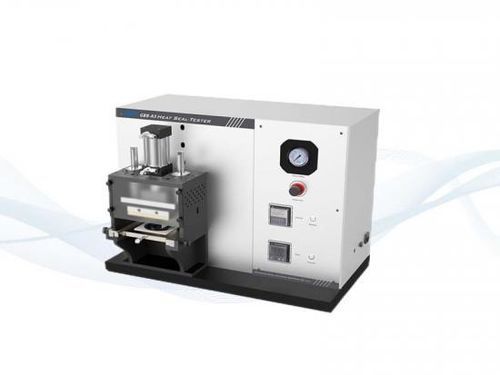

Film heat sealer GBB-A3

manualfoot-operatedautomatic

Product Introduction
GBB-A3 heat sealing tester accurately measures heat sealing temperature, time, pressure and other performance parameters of lid films for jelly cups, yogurt cups, coffee capsules, instant noodle buckets, meal boxes, medical blister packs and other food & pharmaceutical packages. Optimal sealing conditions can be confirmed precisely by testing sealing properties of different materials.

Testing Principle
Install matched fixture on the lower support plate and place sample steadily. Set sealing temperature, time and pressure as required, then start the device. The upper fixture descends to complete sealing. In manual mode, step on foot switch to press sealing cutter with fixed sealing duration. In automatic mode, upper and lower cutters perform cyclic sealing automatically according to preset parameters.

Compliance Standards
QB/T 2358-1998, ASTM F2029, YBB00122003-2015

Technical Parameters
Temperature Range: Room temperature ~ 250°C
Temperature Accuracy: ±1°C
Sealing Time: 0.1 s ~ 99.99 h
Sealing Pressure: 0 ~ 1 MPa
Operation Mode: Manual & Automatic
Air Source: Compressed air
Overall Dimension: 730 × 400 × 535 mm
Weight: 45 kg
Power: 1200 W
Power Supply: AC 220V, 50Hz

Product Features

• Pull-out Loading Design Double-layer lower plate enables pull-out feeding, keeping operators away from the sealing cutter for safe and convenient operation.
• High-precision Temperature Sensor PID temperature control ensures accuracy up to ±1°C, providing stable performance and low failure rate.
• Dual Optional Test Modes Automatic mode enables repetitive fast sealing; manual mode with foot switch allows simple and safe single-cycle sealing.
• New Pneumatic Driving System Composed of pressure gauge, regulating valve and cylinder, air pressure can be precisely adjusted for efficient sealing.
• Customized Service Available Custom fixtures accommodate various cup sizes. Anti-stick sealing cutter and customizable shape, size and edge smoothness meet diverse testing requirements.

Application Fields

• Jelly Cup
• Yogurt Cup
• Coffee Capsule
• Medical Blister Pack

Technical Specifications

• Model: GBB-A3
• Temperature Range: Room temperature to 250°C
• Temperature Accuracy: ±1°C (PID control)
• Sealing Time Range: 0.1 s to 99.99 h
• Sealing Pressure Range: 0 to 1 MPa (pneumatic)
• Operation Modes: Manual and Automatic
• Air Source: Compressed air
• Dimensions: 730 × 400 × 535 mm
• Weight: 45 kg
• Power: 1200 W, AC 220V 50Hz
