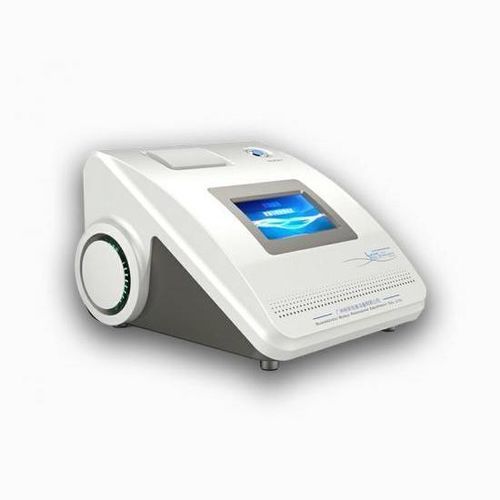

Absolute pressure decay leak tester AUTO GBM-D1

pressurehigh-pressureleakage

Instrument introduction
GBM-D1 intelligent sealing performance tester pressurizes samples to evaluate seal strength and package integrity. It supports burst, leakage (pressure decay), creep and bubble methods and accepts flexible, rigid, porous and laminated aluminum packaging used in food, pharmaceuticals and industrial applications. The unit offers multiple test modes, accessory options and compliance with relevant ASTM, ISO and GB/YY standards.

Standard

• ASTM F1140 Blasting and Creep of Flexible Barrier Packaging (Unrestrained)
• ASTM F2054 Rupture Test (with Limiting Plate)
• ASTM F2095 Pressure Decay Leak Test (unrestrained or with restrained plate)
• ASTM F2096 Bubble Leak Test (with water tank)
• ISO 11607 Packaging for Terminally Sterilized Medical Devices
• YY/T 0681.3 Test methods for packaging of sterile medical devices - Part 3: Resistance to internal pressure damage of unconstrained packaging
• YY/T 0681.5 Test methods for packaging of sterile medical devices - Part 5: Detection of gross leakage by internal pressure method (bubble method)
• YY/T 0681.9 Test methods for packaging of sterile medical devices - Part 9: Seal burst test of flexible packaging by internal air pressure method of restraint plate
• GB/T 17876 Packaging Containers Plastic Anti-theft Bottle Caps

Test principle
The tester applies controlled air pressure to the sealed sample either until burst or to a specified pressure level to assess sealing performance. Tests can quantify burst pressure, pressure decay, time-to-failure under sustained pressure and visible leaks (bubbles). Results are reported with test pressure, hold time, package location and leak position.

Test method

• Burst test: Pressure is increased continuously until the package ruptures. (Compliant with ASTM F1140, ASTM F2054, YY/T 0681.3, YY/T 0681.9)
• Leakage test: Inflate to a preset pressure and hold for the test duration, then perform pressure decay/leakage measurement. Testing can be unconstrained or use a restraining plate. (Compliant with ASTM F2095, ISO 11607-1)
• Creep test: Maintain a constant pressure near burst limit to evaluate seal performance over time; optional creep-to-failure mode available. (ASTM F1140, YY/T 0681.3)
• Bubble test: Submerge package in water, pressurize to a set pressure and observe for bubble emission during the hold period. (ASTM F2096, YY/T 0681.5)

Technical parameter

• Model / Item NO.: AUTO GBM-D1
• Test Range: 0.1 kPa ~ 1 MPa (high-pressure capability up to 1.6 MPa for specific tests)
• Resolution: 0.1 kPa
• Test Accuracy: 0.1 kPa
• Test Time: 1 ~ 1000 s
• Supported Test Types: Burst, Leakage (pressure decay), Creep, Bubble Method
• Applicable Packaging: Flexible, Semi-plastic, Full-plastic, composite films, blister packs, hoses, bottle caps
• Air Supply Pressure Required: 0.5 ~ 0.9 MPa
• Dimensions (W×D×H): 400 × 415 × 272 mm
• Power Supply: AC 220V, 50Hz; Power Rating: 150W
• Weight: 10 kg

Application
Suitable for pressure rupture, leak and creep testing of various packaging materials and formats used in food, pharmaceutical, cosmetic and industrial sectors. Typical sample types include plastic composite bags, aluminum-plastic laminates, blister packs, hoses (toothpaste, cosmetics, ointments), three-side sealed pouches and anti-theft bottle caps.

Other applications include aerosol valve sealing checks, high-pressure tests (up to 1.6 MPa for specific setups) and verification of closures and easy-open cans.

Technical specifications

• Model / Item NO.: AUTO GBM-D1
• Test Range: 0.1 kPa ~ 1 MPa
• Resolution: 0.1 kPa
• Test Accuracy: 0.1 kPa
• Test Time Range: 1 to 1000 s
• Supported Test Types: Burst, Leakage (pressure decay), Creep, Bubble Method
• Applicable Packaging: Flexible, Semi-plastic, Full-plastic, composite films, blister packs, hoses, bottle caps
• Air Supply Pressure Required: 0.5 ~ 0.9 MPa (high-pressure capability up to 1.6 MPa for certain tests)
• Dimensions (W×D×H): 400 × 415 × 272 mm
• Power Supply: AC 220V, 50Hz; Power Rating: 150W
• Weight: 10 kg
