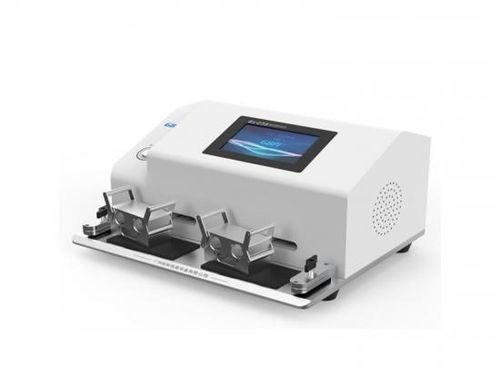

Abrasion-resistance test device crockmeter GX-C3S

Product Introduction
Designed according to international standards, the GX-C3S detects abrasion resistance of printing ink layers and surface coatings. It evaluates print rub resistance, ink adhesion and coating durability with high accuracy to support quality control and material optimization in printing and surface finishing processes.

Test Principle
Rub printed samples against clean offset paper under a fixed load and preset rubbing cycles. After testing, measure specimen optical density or visual change and compare with initial values to calculate ink abrasion resistance.

Applicable Standards
ASTM D5264, TAPPI T830

Technical Parameters
Item: Specification
Model: GX-C3S
Rubbing Load: 8.9 N (2 lb); 17.8 N (4 lb)
Rubbing Speed: 10–200 cpm
Rub Blocks: 910 g ±10 g; 1810 g ±10 g
Rub Mode: Arc reciprocating motion
Rub Cycles: 1–999999
Specimen Quantity: 2 pcs
Overall Dimension: 570 mm × 400 mm × 265 mm (L × W × H)
Power: 600 W
Power Supply: AC 220 V 50 Hz
Net Weight: 24.5 kg

Product Features

• Color touch screen for intuitive parameter setting and operation.
• Fully automatic operation with one-key start and auto-stop.
• High-precision ball screw for stable movement and long service life.
• High testing accuracy ensures reliable experiment results.
• Standard-compliant structure for accurate and reproducible data.
• Built-in printer outputs test reports directly.
• Arc reciprocating rub simulates practical complex friction conditions.
• Adjustable rubbing cycles and rubbing speed.
• Overload protection with automatic stop when load exceeds preset threshold.

Application Fields
Used in printing, packaging, plastic coating and surface finishing industries to evaluate ink layer wear and coating abrasion performance of printed products.

Technical Specifications

• Model: GX-C3S
• Rubbing Load: 8.9 N (2 lb) / 17.8 N (4 lb)
• Rubbing Speed: 10–200 cpm
• Rub Blocks: 910 g ±10 g; 1810 g ±10 g
• Rub Mode: Arc reciprocating motion
• Rub Cycles: 1–999999
• Specimen Quantity: 2 pcs
• Overall Dimension: 570×400×265 mm (L×W×H)
• Power: 600 W
• Power Supply: AC 220 V 50 Hz
• Net Weight: 24.5 kg
