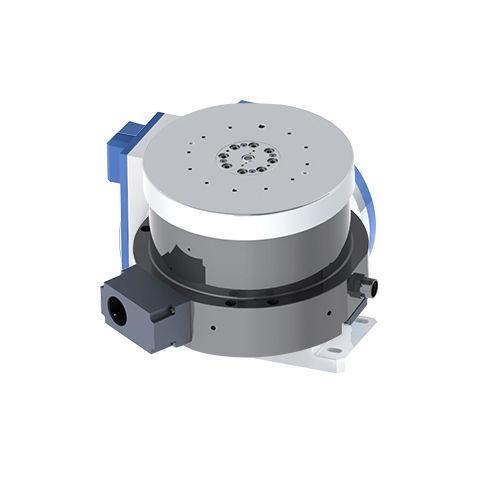

Motor-driven rotary table DZGD-200A7

verticalfor machiningdirect-drive

Mainly applied in CNC machine，working as the indexing components. 1、High efficiency With the maximum speed of revolution being 1500rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency. 2、Ultra-high Precision The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±10″ and the repetitive positioning accuracy being ±2″. 3、High Stability With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients. Center for Hight（mm） - 212.5 Clamping Way - Air Clamping Torque（Nm） - 120 Disk Surface Runout（mm） - 0.005 Disk Surface Radial Runout (mm) - 0.02 Vacuum suction function - Yes Center vent function - Yes Voltage for Driver (V) - 220 Rated /Maximum Speed（Rpm） - 1500/1500 Rated /MaximumTorque（Nm） - 41.4/138.6 Rated/Maximum Current (A) - 20.4/75 Positioning Precision(arc-sec) - ±10 Repeated Positioning Precision(arc-sec) - ±2 Minimum unit (degree) - 0.001 Load Capacity (kg) - 40 Weight (kg) - 82 Level of Protection - IP66
