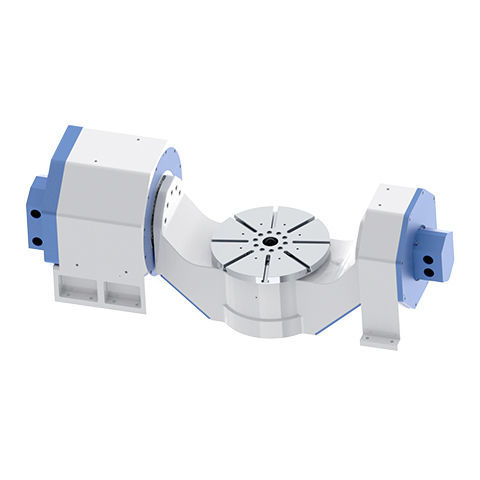

Motor-driven rotary table DZDC-350-60/200-557/253-A26W-A/A3 - A Axis / C Axis

verticalfor machiningdirect-drive

Mainly applied in CNC machine，working as the indexing components. Features 1、High efficiency With the maximum speed of revolution being 1500rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency. 2、Super Large Torque The torque motor originally developed adopts the innovative design, with the efficiency improving 32.3% than that of general motor, thereby ensuring the highly-efficient processing in super large torque. 3、Ultra-high Precision The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″. 4、High Clamping Force The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity. 5、Power-off Self-locking The five-axis turntable with an innovative clamping mechanism can realize automatic locking of the A/C axis under extreme circumstances (such as abnormal power off of the mac hinetool) toprevent collision . 6、High Stability With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.
