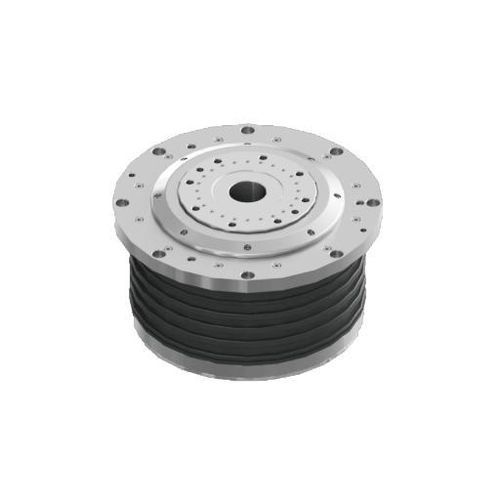

Motor-driven rotary table DZDV-320-200-41-300-A26

horizontalfor grindingIP67

Overview
The DZDV-320-200-41-300-A26 is a low-profile rotary table designed for tool-grinding and machine integration. It combines a broad upper mounting surface with a compact height, rated torque 300 Nm, 600 Nm peak torque and a 200 kg allowable load. Optional pneumatic clamping and BiSS-C feedback enable precision positioning in automated grinding and machining cells.

Technical data
DZDV-320-200-41-300-A26
Rated speed: 200 rpm
Max. speed: 200 rpm
Rated torque: 300 Nm
Max. torque: 600 Nm
Rated current: 18 A
Max. current: 36 A
Number of motor poles: 48
Rated voltage: 220 V
Clamp torque: 235 Nm
Clamp air pressure: 0.5–0.6 MPa (option)
Positioning accuracy: Grating ±10 s; Time grating ±3 s
Bidirectional repeatability: Grating ±2 s; Time grating ±1 s
Protection rating: IP67
Encoder type: BiSS-C
Allowable load: 200 kg
Allowable workpiece inertia: 3 kg·m²
Allowable moment load: 1000 Nm

Applications
Integration into tool grinding machines, servo-controlled indexing for fixture systems, and use in compact machining workcells where high torque and precise encoder feedback are required.

Features / Technical specifications

• Model: DZDV-320-200-41-300-A26
• Low-profile rotary table with wide upper mounting surface
• Rated / max torque: 300 Nm / 600 Nm
• Allowable load: 200 kg; allowable inertia: 3 kg·m²
• Speed: 200 rpm (rated and max)
• Encoder feedback: BiSS-C for high-precision positioning
• Pneumatic clamp option: 235 Nm at 0.5–0.6 MPa
• Protection: IP67 for harsh environments
• Electrical: 220 V; rated current 18 A, max 36 A
• Suitable for tool-grinding fixtures and automation cells
