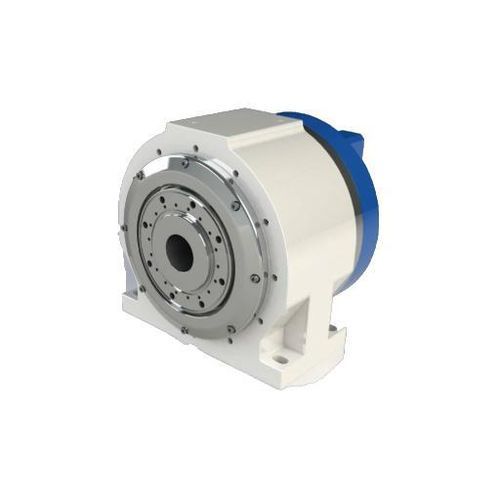

Motor-driven rotary table DZGD-180A36

horizontalfor machiningdirect-drive

Overview
Within the 180 mm range, the DZGD-180A36 provides the highest torque and load capacity. Rated torque is 157 Nm with peaks to 332 Nm. It supports 80 kg directly or 120 kg with a tailstock, enabling compact CNC integration without a larger rotary platform.

Technical data (table)
DZGD-180A36
Rated speed: 200 rpm
Max speed: 250 rpm
Rated torque: 157 Nm
Max torque (peak): 332 Nm
Rated current: 12.7 A
Max current: 20 A
Motor poles: 30
Rated voltage: 220 V
Clamp torque: 235 Nm
Clamp air pressure: 0.5~0.6 MPa
Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
Bidirectional repeated positioning accuracy: Grating ±2 sec; Time grating ±1 sec
Protection rating: IP67
Encoder options: Mitsubishi, Fanuc, Siemens, BiSS-C
Allowable load: 80 kg (120 kg with tailstock)
Allowable workpiece inertia: 1.2 kg·m²
Allowable moment load: 500 Nm

Dimensions
Product dimension diagram available on the product page (schematic image).

Key specifications

• Model: DZGD-180A36
• Table diameter: 180 mm
• Rated/Max speed: 200 / 250 rpm
• Rated torque: 157 Nm; Peak torque: 332 Nm
• Allowable load: 80 kg (120 kg with tailstock)
• Clamp torque: 235 Nm; clamp air pressure 0.5~0.6 MPa
• Positioning accuracy and repeatability: grating ±10s / ±2s; time grating ±3s / ±1s
• Ingress protection: IP67
• Encoder options: Mitsubishi, Fanuc, Siemens, BiSS-C
• Allowable workpiece inertia: 1.2 kg·m²; allowable moment load: 500 Nm
