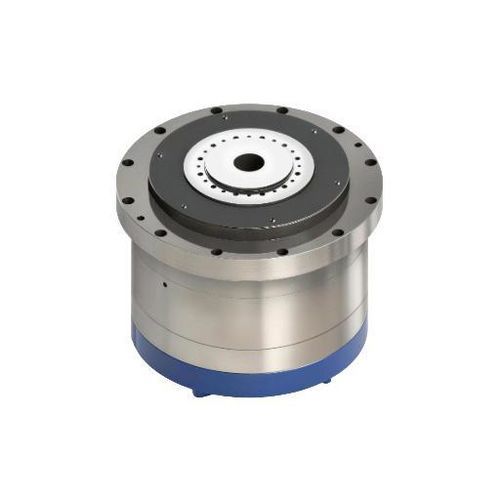

Motor-driven rotary table DZDV-160-200-62-35-A26-A1verticalfor machiningcompact
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- vertical
- Applications
- for machining
- Other characteristics
- compact, direct-drive, 4-axis
Description
Product overview
The A1 configuration is designed for compact machine layouts. The rotary unit weighs 40 kg and supports a carrying load up to 35 kg. It delivers 240 rpm rated speed, 26‑bit BiSS‑C encoder feedback, IP66 protection and bidirectional repeatability specified at ±1 arcsec.
Technical data (table)
DZDV-160-200-62-35-A26-A1
Rated speed: 240 rpm
Max. speed: 240 rpm
Rated torque: 30 Nm
Max. torque: 75 Nm
Rated current: 2.8 A
Max. current: 7.0 A
Motor poles: 22
Rated voltage: 220 V
Clamp torque: ≥235 Nm
Clamp air pressure: 0.47–0.55 MPa
Positioning accuracy: ±3 arcsec
Bidirectional repeated positioning accuracy: ±1 arcsec
Protection rating: IP66
Encoder: 26 bit (BiSS‑C protocol)
Allowable load: 35 kg
Noise level: ≤68 dB
Net weight: 40 kg
Applications
Technical specifications
The A1 configuration is designed for compact machine layouts. The rotary unit weighs 40 kg and supports a carrying load up to 35 kg. It delivers 240 rpm rated speed, 26‑bit BiSS‑C encoder feedback, IP66 protection and bidirectional repeatability specified at ±1 arcsec.
Technical data (table)
DZDV-160-200-62-35-A26-A1
Rated speed: 240 rpm
Max. speed: 240 rpm
Rated torque: 30 Nm
Max. torque: 75 Nm
Rated current: 2.8 A
Max. current: 7.0 A
Motor poles: 22
Rated voltage: 220 V
Clamp torque: ≥235 Nm
Clamp air pressure: 0.47–0.55 MPa
Positioning accuracy: ±3 arcsec
Bidirectional repeated positioning accuracy: ±1 arcsec
Protection rating: IP66
Encoder: 26 bit (BiSS‑C protocol)
Allowable load: 35 kg
Noise level: ≤68 dB
Net weight: 40 kg
Applications
- Compact CNC indexing and 4‑axis machine configurations requiring sealed, high‑precision rotary tables with closed‑loop feedback.
Technical specifications
- Model: DZDV-160-200-62-35-A26-A1
- Configuration: A1 for compact machine layouts
- Rotary unit weight: 40 kg
- Allowable carrying load: 35 kg
- Rated / max speed: 240 rpm
- Rated / max torque: 30 Nm / 75 Nm
- Rated / max current: 2.8 A / 7.0 A
- Motor poles: 22
- Rated voltage: 220 V
- Clamp torque: ≥235 Nm
- Clamp air pressure: 0.47–0.55 MPa
- Positioning accuracy: ±3 arcsec
- Bidirectional repeatability: ±1 arcsec
- Protection rating: IP66
- Encoder: 26 bit (BiSS‑C protocol)
- Noise level: ≤68 dB
- Net weight: 40 kg
