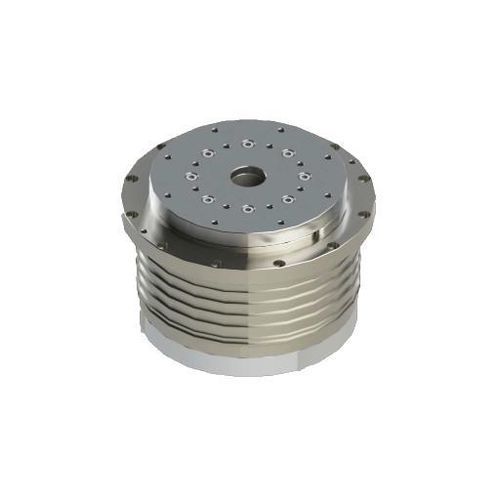

Motor-driven rotary table DZDV-320-200-60.5-300-A26

horizontalfor grindingcompact

Overview
This configuration integrates a 600 Nm peak drive and 200 kg allowable load into a compact cylindrical housing. The unit supports up to 3 kg·m² workpiece inertia and a 1,000 Nm allowable moment load, enabling substantial fixtures without a tall external base. Optional pneumatic clamp and BiSS‑C feedback are available.

Technical data (table)
DZDV-320-200-60.5-300-A26
Rated speed: 200 rpm
Max. speed: 200 rpm
Rated torque: 300 Nm
Max. torque: 600 Nm
Rated current: 18 A
Max. current: 36 A
Number of motor poles: 48
Rated voltage: 220 V
Clamp torque: Assorting 235 Nm (option)
Clamp air pressure: Assorting 0.5–0.6 MPa (option)
Positioning accuracy: Grating ±10 s; Time grating ±3 s
Bidirectional repeated positioning accuracy: Grating ±2 s; Time grating ±1 s
Degree of protection: IP67
Encoder type: BiSS-C (26 bit)
Allowable load: 200 kg
Allowable workpiece inertia: 3 kg·m²
Allowable moment load: 1000 Nm

Applications
Designed for direct‑drive tool grinding and compact 4‑axis rotary table integration. Suitable for automated tool‑grinding systems, fixtures requiring high torque in restricted envelope, and precision rotary axes in production cells.

Features / technical specifications

• Model: DZDV-320-200-60.5-300-A26
• Rated / max speed: 200 rpm / 200 rpm
• Rated torque: 300 Nm; Peak torque: 600 Nm
• Allowable load: 200 kg
• Allowable workpiece inertia: 3 kg·m²
• Allowable moment load: 1000 Nm
• Rated / max current: 18 A / 36 A
• Number of motor poles: 48
• Rated voltage: 220 V
• Clamp torque (option): 235 Nm; clamp air pressure: 0.5–0.6 MPa
• Positioning accuracy: Grating ±10 s (positioning); Repeatability bidirectional: Grating ±2 s
• Encoder: BiSS-C (26 bit)
• Protection: IP67
