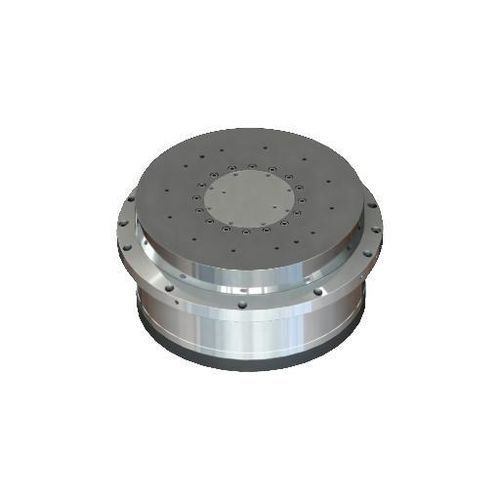

Motor-driven rotary table DZDV-500-700-112.5-400-A26-A

verticalfor machining

Overview
Built to reduce rotary and indexing time, the DZDV-500-700-112.5-400-A26-A rotary table delivers up to 1,400 rpm peak while maintaining 800 Nm peak torque and a rated load of 200 kg. Water cooling and a 26-bit BiSS-C encoder enable precise feedback and controlled operation at high speeds.

Technical data
DZDV-500-700-112.5-400-A26-A
Rated speed: 700 rpm
Max. speed: 1400 rpm
Rated torque: 400 Nm
Peak torque: 800 Nm
Rated current: 55 A
Max. current: 110 A
Motor poles: 78
Rated voltage: 380 V
End-face runout: ≤0.02 mm
Radial runout: ≤0.03 mm
Positioning accuracy: ±10"
Brake air pressure: 0.47–0.55 MPa
Cooling method: Water cooling
Brake clamping torque (inflation): ≥1400 Nm
Encoder: 26-bit BiSS-C
Load capacity: ≤200 kg
Net weight: 350 kg

Dimensions
Dimension drawings available on request.

Features / Technical specifications

• Model series: DZDV-500
• Rated/peak torque: 400 Nm / 800 Nm
• Rated/max speed: 700 rpm / 1400 rpm
• Load capacity: ≤200 kg
• Cooling: Water cooling
• Encoder: 26-bit BiSS-C
• Electrical: 380 V; 55 A rated, 110 A max
• Precision: Positioning ±10"; end-face runout ≤0.02 mm; radial runout ≤0.03 mm
• Brake: Air pressure 0.47–0.55 MPa; clamping torque ≥1400 Nm
• Net weight: 350 kg
