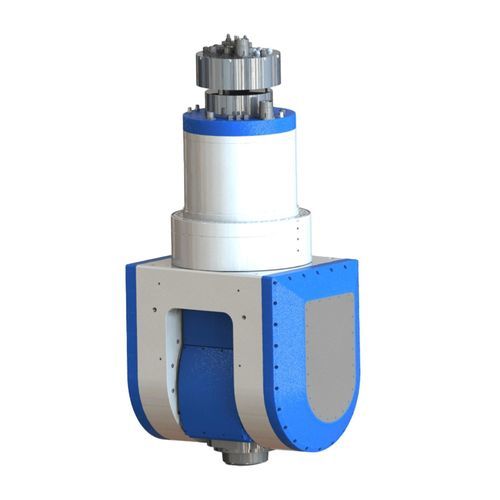

2-axis milling head DBDB-335

flange-mountedelectric

Introduction
This DBDB-335 version balances strong axis holding with higher spindle speed. Dual-side braking reinforces the swing axis, while the 18,000 rpm HSK-A63 spindle supports finish milling after heavier indexed or simultaneous five-axis cutting stages.

Technical data — Shaft and rotary
Shaft type: Swing shaft | Rotation shaft
Size of mounted flange (mm): / | φ335
Rated voltage (V): 220 | 220
Rated torque (N.m): 764 | 810
Max. torque (N.m): 1528 | 1150
Rated speed (rpm): 100 | 100
Brake clamping torque (N.m) (0.6MPa): 2160 | 2800
Encoder: EnDat2.2 | EnDat2.2
Positioning accuracy (arcsec): ±7.5(15) | ±7.5(15)
Repeated accuracy (arcsec): ±2 | ±2
Cooling system: Water cooling
Product weight (kg): ≈655

Technical data — Electric spindle parameters
Rated speed (rpm): 5500
Max. speed (rpm): 18000
Rated voltage (V): 350
Rated frequency (Hz): 275
Maximum frequency (Hz): 900
Continuous rated output power (S1-100%/kW): 35
Continuous rated output torque (S1-100%/N.m): 60.7
Continuous rated input current (S1-100%/A): 70
Maximum current (A): 150
Cooling system: Water cooling
Tool holder interface: HSK-A63
Broaching force (N): 25000(1±15%)
Tool unloading mode: Hydraulic unloading tool
Encoder signal: Sin/Cos, 1Vpp
Mounting diameter of spindle (mm): φ180H5
Runout of taper hole of shaft end (mm): 0.001
Runout of shaft end surface (mm): 0.001

Features / technical specifications

• Model: DBDB-335
• Brand: Haozhi
• Shaft configuration: High-rigidity two-axis milling head (swing + rotation)
• Swing-axis max torque: 1528 N.m
• Rotation-axis max torque: 1150 N.m
• Rated torque (swing / rotation): 764 N.m / 810 N.m
• Rated speed (axis): 100 rpm (both shafts)
• Brake clamping torque (swing / rotation at 0.6MPa): 2160 N.m / 2800 N.m
• Encoder (axis): EnDat2.2
• Positioning accuracy: ±7.5(15) arcsec
• Repeated accuracy: ±2 arcsec
• Spindle max speed: 18,000 rpm
• Spindle rated speed: 5,500 rpm
• Spindle continuous power: 35 kW
• Spindle continuous torque: 60.7 N.m
• Spindle rated voltage / frequency: 350 V / 275 Hz
• Spindle maximum frequency: 900 Hz
• Spindle max current: 150 A; rated input current: 70 A
• Spindle interface: HSK-A63
• Broaching force: 25,000 N (±15%)
• Tool unloading: Hydraulic unloading tool
• Spindle mounting diameter: φ180H5
• Runout (taper hole / shaft end surface): 0.001 mm / 0.001 mm
• Cooling: Water cooling (head and spindle)
• Approx. product weight: ≈655 kg
