Motor-driven rotary table DZDV-320-200-225-300-A26

horizontalfor grindingdirect-drive

Product overview

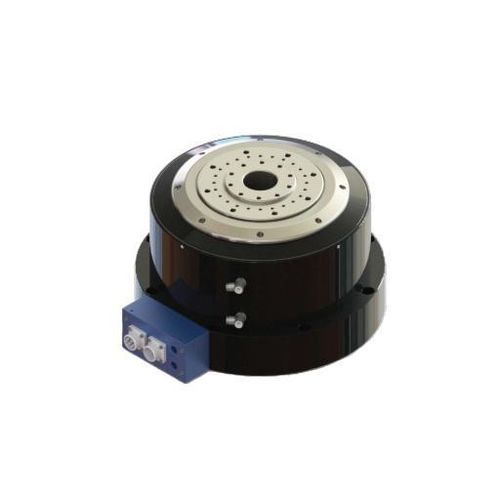

The enclosed-base design integrates the rotary body and external connections into a taller housing while preserving the DZDV-320 series rated torque of 300 Nm and rated load of 200 kg. The unit provides a 200 kg rotary table with 600 Nm peak torque, optional 235 Nm clamp, IP67 ingress protection and BiSS-C feedback, intended for direct-drive tool grinders and precision indexing applications.

Technical data (table)
DZDV-320-200-225-300-A26
Rated speed: 200 rpm
Max. speed: 200 rpm
Rated torque: 300 Nm
Peak torque (Max.torque): 600 Nm
Rated current: 18 A
Max. current: 36 A
Motor poles: 48
Rated voltage: 220 V
Clamp torque (optional): 235 Nm
Clamp air pressure: 0.5–0.6 MPa
Positioning accuracy (grating): ±10 s
Positioning accuracy (time grating): ±3 s
Bidirectional repeatability (grating): ±2 s
Bidirectional repeatability (time grating): ±1 s
Ingress protection: IP67
Encoder type: BiSS-C
Allowable load: 200 kg
Allowable workpiece inertia: 3 kg·m²
Allowable moment load: 1000 Nm

Applications

• Integration into direct-drive tool grinders requiring enclosed routing of connections.
• Precision indexing and high-load vertical clamping operations.
• Machine tool tables and automated cells where IP67-rated protection is required.

Features / technical specifications

• Model: DZDV-320-200-225-300-A26 (enclosed-base)
• Rated/Max speed: 200 rpm
• Rated torque: 300 Nm; Peak torque: 600 Nm
• Rated/Max current: 18 A / 36 A
• Motor poles: 48
• Rated voltage: 220 V
• Optional clamp: 235 Nm (operating air pressure 0.5–0.6 MPa)
• Positioning accuracy and repeatability expressed in seconds (see table)
• Ingress protection: IP67
• Encoder: BiSS-C
• Allowable load: 200 kg; Allowable inertia: 3 kg·m²; Allowable moment: 1000 Nm
