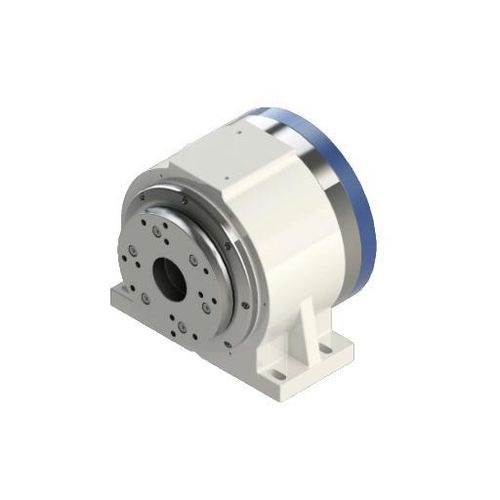

Motor-driven rotary table DZGD-180A35

horizontalfor grindingdirect-drive

Product overview
The DZGD-180A35 is a rotary table engineered for tool grinding and supported workpiece configurations. With an optional tailstock the allowable load increases from 60 kg to 100 kg. Multiple encoder options (Mitsubishi, Fanuc, Siemens, BiSS-C) enable integration with common CNC control platforms. Rated speed is 200 rpm with a maximum up to 250 rpm and rated torque of 105 Nm (peak 332 Nm).

Technical data
DZGD-180A35
Rated speed: 200 rpm
Max. speed: 250 rpm
Rated torque: 105 Nm
Max. torque: 332 Nm
Rated current: 8.5 A
Max. current: 20 A
Motor poles: 30
Rated voltage: 220 V
Clamp torque: Assorting
Clamp air pressure: 0.5–0.6 MPa
Positioning accuracy (grating / time grating): ±10 sec / ±3 sec
Bidirectional repeated positioning accuracy (grating / time grating): ±2 sec / ±1 sec
Protection degree: IP67
Encoder type: Mitsubishi (optional), Fanuc, Siemens, BiSS-C
Allowable load: 60 kg (100 kg with tailstock)
Allowable workpiece inertia: 1.2 kg·m²
Allowable moment load: 500 Nm

Key features

• Load capacity: 60 kg standard, 100 kg with tailstock
• High-precision positioning using grating and time-grating feedback
• Multiple encoder interfaces for straightforward CNC integration
• Suitable for tool grinding applications up to 250 rpm and 332 Nm peak torque

Specifications

• Model: DZGD-180A35
• Rated speed: 200 rpm
• Max. speed: 250 rpm
• Rated torque: 105 Nm; Max. torque: 332 Nm
• Rated current: 8.5 A; Max. current: 20 A
• Motor poles: 30
• Rated voltage: 220 V
• Clamp torque: Assorting
• Clamp air pressure: 0.5–0.6 MPa
• Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
• Bidirectional repeated positioning accuracy: Grating ±2 sec; Time grating ±1 sec
• Protection degree: IP67
• Encoder options: Mitsubishi (optional), Fanuc, Siemens, BiSS-C
• Allowable load: 60 kg (100 kg with tailstock)
• Allowable workpiece inertia: 1.2 kg·m²
• Allowable moment load: 500 Nm
