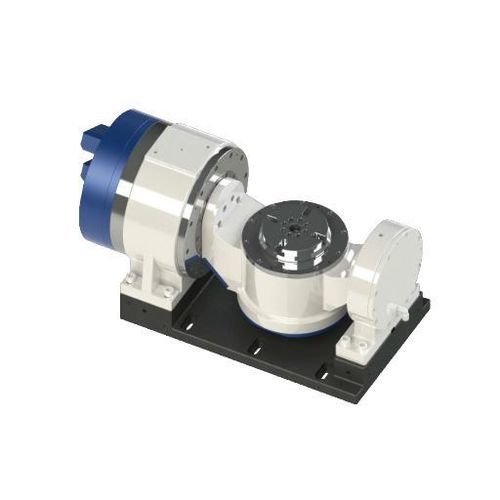

Motor-driven rotary table DZDC-160-250/2000-105/17-A26W-A/Ahorizontalfor machiningcompact
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- horizontal
- Applications
- for machining
- Other characteristics
- compact, direct-drive, high-speed
- Diameter
200 mm
(8 in)
Description
INTRODUCTION
This DZDC-160 variant is defined by a 2,000 rpm C axis for continuous high-speed rotation rather than a conventional indexing speed. A water-cooled C axis, 30 kg payload and up to 332 N·m peak torque on the A axis enable fast workpiece rotation in a compact five-axis cradle suitable for industrial machining applications.
TECHNICAL DATA
DZDC-160-250/2000-105/17-A26W-A/A
A axis / C axis
Disk surface diameter (mm): A - / ; C - 200
Center height (mm): A - 205 ; C - /
Disk height (mm): A - / ; C - 246.5
Center hole diameter (mm): A - / ; C - 22
Clamping Way: A - Air(0.5-0.55MPa) ; C - Air(0.5-0.55MPa)
Clamping Torque (N.m): A - 235(@0.5MPa) ; C - 235(@0.5MPa)
Disk surface runout (mm): A - / ; C - 0.005
Disk Radial runout (mm): A - / ; C - 0.005
Driving Type: A - Torque motor direct drive ; C - Torque motor direct drive
Voltage for Driver (V): A - 220 ; C - 220
Rated/Maximum Speed (rpm): A - 200/250 ; C - 2000/2000
Rated/Maximum Torque (N.m): A - 105/332 ; C - 17.6/87.2
Rated/Maximum Current (A): A - 8.5/30 ; C - 10.5/55
Power output S1 100% (kW): A - 2.2 ; C - 3.7
Power Output S6 40% (kW): A - 3.29 ; C - 7.4
Cooling system: A axis - Natural cooling ; C axis - Water-cooling (cooling flow 2.5 L/min)
Motor temperature sensor type: A / C - KTY84-130
Positioning Precision (arc-sec): A / C - ±10(20)
Repeated Positioning Precision (arc-sec): A / C - ±2(4)
Minimum unit (":) A / C - 0.001
Load Capacity (kg): 30 (both axes)
Weight (kg): 147.6 (total)
Level of Protection: IP66
Compatible control systems: Lync, HNC, SYNTEC, FANUC, SIENMENS, MITSUBISHI
FEATURES / TECHNICAL SPECIFICATIONS
This DZDC-160 variant is defined by a 2,000 rpm C axis for continuous high-speed rotation rather than a conventional indexing speed. A water-cooled C axis, 30 kg payload and up to 332 N·m peak torque on the A axis enable fast workpiece rotation in a compact five-axis cradle suitable for industrial machining applications.
TECHNICAL DATA
DZDC-160-250/2000-105/17-A26W-A/A
A axis / C axis
Disk surface diameter (mm): A - / ; C - 200
Center height (mm): A - 205 ; C - /
Disk height (mm): A - / ; C - 246.5
Center hole diameter (mm): A - / ; C - 22
Clamping Way: A - Air(0.5-0.55MPa) ; C - Air(0.5-0.55MPa)
Clamping Torque (N.m): A - 235(@0.5MPa) ; C - 235(@0.5MPa)
Disk surface runout (mm): A - / ; C - 0.005
Disk Radial runout (mm): A - / ; C - 0.005
Driving Type: A - Torque motor direct drive ; C - Torque motor direct drive
Voltage for Driver (V): A - 220 ; C - 220
Rated/Maximum Speed (rpm): A - 200/250 ; C - 2000/2000
Rated/Maximum Torque (N.m): A - 105/332 ; C - 17.6/87.2
Rated/Maximum Current (A): A - 8.5/30 ; C - 10.5/55
Power output S1 100% (kW): A - 2.2 ; C - 3.7
Power Output S6 40% (kW): A - 3.29 ; C - 7.4
Cooling system: A axis - Natural cooling ; C axis - Water-cooling (cooling flow 2.5 L/min)
Motor temperature sensor type: A / C - KTY84-130
Positioning Precision (arc-sec): A / C - ±10(20)
Repeated Positioning Precision (arc-sec): A / C - ±2(4)
Minimum unit (":) A / C - 0.001
Load Capacity (kg): 30 (both axes)
Weight (kg): 147.6 (total)
Level of Protection: IP66
Compatible control systems: Lync, HNC, SYNTEC, FANUC, SIENMENS, MITSUBISHI
FEATURES / TECHNICAL SPECIFICATIONS
- Model: DZDC-160 (variant DZDC-160-250/2000-105/17-A26W-A/A)
- C‑axis high-speed configuration: 2000/2000 rpm, water-cooled
- A‑axis speed: 200/250 rpm (natural cooling)
- Payload (both axes): 30 kg
- A‑axis torque rated/peak: 105/332 N·m
- C‑axis torque rated/peak: 17.6/87.2 N·m
- Clamping: pneumatic (air 0.5–0.55 MPa), clamping torque 235 N·m (@0.5 MPa)
- Direct-drive torque motors on both axes
- Driver voltage: 220 V; rated/maximum currents A: 8.5/30 A, C: 10.5/55 A
- Power (S1/S6): A S1 2.2 kW / S6 3.29 kW ; C S1 3.7 kW / S6 7.4 kW
- Disk dimensions (C axis): surface Ø 200 mm, disk height 246.5 mm, center hole Ø 22 mm
- Runout (C axis): surface/runout 0.005 mm; radial runout 0.005 mm
- Positioning accuracy: ±10(20) arc-sec; repeatability ±2(4) arc-sec
- Protection: IP66; total weight 147.6 kg
- Typical applications: integration on five-axis machining centers where fast C-axis rotation and compact cradle mounting are required
