Motor-driven rotary table DZDA-160-250/400-105/20-A26-A/A3horizontalfor machiningcompact
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- horizontal
- Applications
- for machining
- Other characteristics
- compact, direct-drive, 5-axis, with torque-motor
- Diameter
110 mm
(4 in)
Description
Product overview

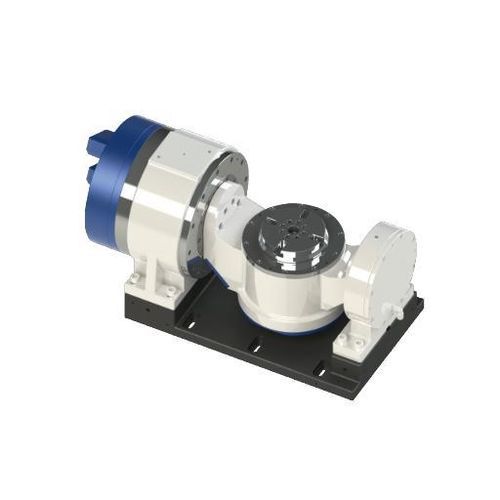

The DZDC-160-A3 is a cradle-layout compact five-axis table designed for multi-face machining of small parts. It features direct-drive torque motors on A and C axes, a Ø110 mm face diameter and a 30 kg payload rating suitable for precision positioning and simultaneous 5-axis operations.
Key specifications
TECHNICAL DATA (table extracted)
Model: DZDA-160-250/400-105/20-A26-A/A3
Columns: A axis | C axis
Disk surface diameter (mm): / | 200
Center height (mm): 205 | /
Disk height (mm): / | 244.5
Center hole diameter (mm): / | 22
Clamping way: Air (0.5–0.55 MPa) | Air (0.5–0.55 MPa)
Clamping torque (N·m): 235 (@0.5 MPa) | 235 (@0.5 MPa)
Disk surface runout (mm): / | 0.005
Disk radial runout (mm): / | 0.005
Driving type: Torque motor direct drive | Torque motor direct drive
Voltage for driver (V): 220 | 220
Rated / maximum speed (rpm): 200 / 250 | 200 / 400
Rated / maximum torque (N·m): 105 / 332 | 20 / 80
Rated / maximum current (A): 8.5 / 30 | 2.7 / 10.8
Power output S1 100% (kW): 2.2 | 0.42
Power output S6 40% (kW): 3.29 | 0.63
Cooling system: Natural cooling | Natural cooling
Motor temperature sensor: KTY84-130 | KTY84-130
Positioning precision (arc-sec): ±10 (20) | ±10 (20)
Repeated positioning precision (arc-sec): ±2 (4) | ±2 (4)
Minimum unit (°): 0.001 | 0.001
Load capacity (kg): 30
Weight (kg): 149
Level of protection: IP66
Compatible controls: Lync, HNC, SYNTEC, FANUC, SIEMENS, MITSUBISHI
Characteristics / Technical specifications
The DZDC-160-A3 is a cradle-layout compact five-axis table designed for multi-face machining of small parts. It features direct-drive torque motors on A and C axes, a Ø110 mm face diameter and a 30 kg payload rating suitable for precision positioning and simultaneous 5-axis operations.
Key specifications
- Face diameter: Ø110 mm
- Payload / load capacity: 30 kg
- Rated / maximum torque: A axis 105 / 332 N·m ; C axis 20 / 80 N·m
- Rated / maximum speed: A axis 200 / 250 rpm ; C axis 200 / 400 rpm
- Protection level: IP66
TECHNICAL DATA (table extracted)
Model: DZDA-160-250/400-105/20-A26-A/A3
Columns: A axis | C axis
Disk surface diameter (mm): / | 200
Center height (mm): 205 | /
Disk height (mm): / | 244.5
Center hole diameter (mm): / | 22
Clamping way: Air (0.5–0.55 MPa) | Air (0.5–0.55 MPa)
Clamping torque (N·m): 235 (@0.5 MPa) | 235 (@0.5 MPa)
Disk surface runout (mm): / | 0.005
Disk radial runout (mm): / | 0.005
Driving type: Torque motor direct drive | Torque motor direct drive
Voltage for driver (V): 220 | 220
Rated / maximum speed (rpm): 200 / 250 | 200 / 400
Rated / maximum torque (N·m): 105 / 332 | 20 / 80
Rated / maximum current (A): 8.5 / 30 | 2.7 / 10.8
Power output S1 100% (kW): 2.2 | 0.42
Power output S6 40% (kW): 3.29 | 0.63
Cooling system: Natural cooling | Natural cooling
Motor temperature sensor: KTY84-130 | KTY84-130
Positioning precision (arc-sec): ±10 (20) | ±10 (20)
Repeated positioning precision (arc-sec): ±2 (4) | ±2 (4)
Minimum unit (°): 0.001 | 0.001
Load capacity (kg): 30
Weight (kg): 149
Level of protection: IP66
Compatible controls: Lync, HNC, SYNTEC, FANUC, SIEMENS, MITSUBISHI
Characteristics / Technical specifications
- Configuration: compact cradle five-axis table for small-workpiece multi-face machining
- Model: DZDC-160-A3
- Face diameter (work area): Ø110 mm
- Payload: 30 kg
- Driving type: torque motor direct drive on A and C axes
- Torque (rated / max): A axis 105 / 332 N·m ; C axis 20 / 80 N·m
- Speed (rated / max): A axis 200 / 250 rpm ; C axis 200 / 400 rpm
- Positioning accuracy: typ. ±10 (20) arc-sec ; repeatability typ. ±2 (4) arc-sec
- Clamping: air clamping (0.5–0.55 MPa), clamping torque 235 N·m (@0.5 MPa)
- Protection: IP66
- Unit weight: 149 kg
- Compatible CNC: Lync, HNC, SYNTEC, FANUC, SIEMENS, MITSUBISHI
