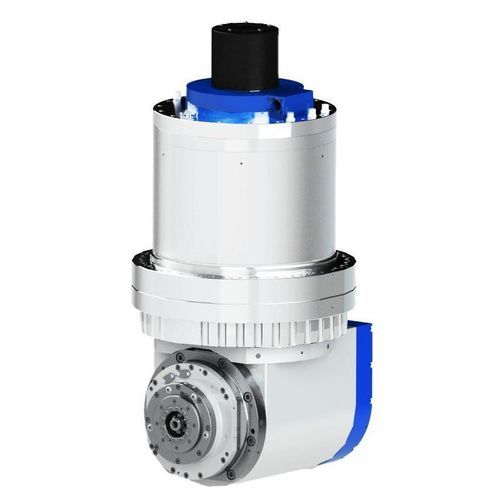

2-axis milling head DBDB-335-100-810-A26W-A1

continuousfor heavy millingflange-mounted

Overview
Designed for heavy cutting on 5-axis and multi-axis machines, the DBDB-335-100-810-A26W-A1 provides a continuous rotary-axis torque of 810 N·m (1,150 N·m peak) and integrates an HSK-T63 motorized spindle delivering 80 N·m continuous torque and 37 kW continuous output power for low-speed, high-load machining. The spindle supports up to 12,000 rpm and features high clamping force for secure tool retention.

Highlights

• Purpose: heavy cutting and high-torque rotary-axis machining.
• Rotary axis: 810 N·m rated torque; 1,150 N·m maximum; rated speed 100 rpm.
• Integrated HSK-T63 spindle: 37 kW (S1), 80 N·m continuous torque, max 12,000 rpm, rated 4,410 rpm.
• Brake clamping torque ≥ 2,800 N·m (0.55 MPa).
• Rigidity: axial > 170 N/μm at shaft end; radial > 300 N/μm.
• Encoder: 27 bit (FANUC), signal Sin/Cos 1 Vpp; positioning accuracy ±7.5 arcsec (±15); repeatability ±2 arcsec.
• Cooling: water cooling for axis and spindle; product weight ≈353 kg.

Technical Data (summary)
2-axis head model: DBDB-335-100-810-A26W-A1; flange size φ335 mm; head rated voltage 220 V; rotary axis rated torque 810 N·m; max torque 1,150 N·m; rotary axis rated speed 100 rpm; brake clamping torque ≥ 2,800 N·m (0.55 MPa); encoder 27 bit (FANUC); positioning accuracy ±7.5 arcsec (±15); repeatability ±2 arcsec; cooling water; product weight ≈353 kg.

Electric spindle parameters
Rated speed 4,410 rpm; max speed 12,000 rpm; rated voltage 380 V; rated frequency 204 Hz; max frequency 800 Hz; continuous output power 37 kW (S1); continuous output torque 80 N·m; continuous input current 75 A; max current 124 A; cooling water; tool interface HSK-T63; broaching force 20,000–28,000 N; tool unloading mode hydraulic; encoder signal Sin/Cos 1 Vpp; spindle mounting diameter φ210h5; runout taper hole 0.001 mm; runout shaft end surface 0.001 mm.

Applications & Use Cases

• Heavy cutting and high-torque rotary-axis operations on 5-axis and multi-axis machining centers.
• Low-speed, high-power finishing and roughing where strong axis holding and high clamping force are required.
• Suitable for aerospace, automotive, mold & die, and other sectors requiring high-torque rotary axes with a powerful HSK-T63 spindle.

Technical specifications

• Model: DBDB-335-100-810-A26W-A1
• Series: DBDB-335
• Rotary axis rated torque: 810 N·m
• Rotary axis max torque: 1,150 N·m
• Rotary axis rated speed: 100 rpm
• Brake clamping torque (0.55 MPa): ≥ 2,800 N·m
• Encoder: 27 bit (FANUC)
• Positioning accuracy: ±7.5 arcsec (±15)
• Repeatability: ±2 arcsec
• Axial rigidity at shaft end: > 170 N/μm
• Radial rigidity: > 300 N/μm
• Electric spindle power (continuous): 37 kW
• Electric spindle continuous torque: 80 N·m
• Electric spindle rated speed: 4,410 rpm; max 12,000 rpm
• Spindle rated voltage: 380 V; rated frequency 204 Hz (max 800 Hz)
• Continuous input current (spindle): 75 A; max current 124 A
• Spindle interface: HSK-T63
• Broaching force: 20,000–28,000 N
• Tool unloading: hydraulic
• Encoder signal type: Sin/Cos 1 Vpp
• Spindle mounting diameter: φ210h5
• Runout (taper hole / shaft end surface): 0.001 mm / 0.001 mm
• Cooling: water cooling (axis and spindle)
• Approx. product weight: 353 kg
