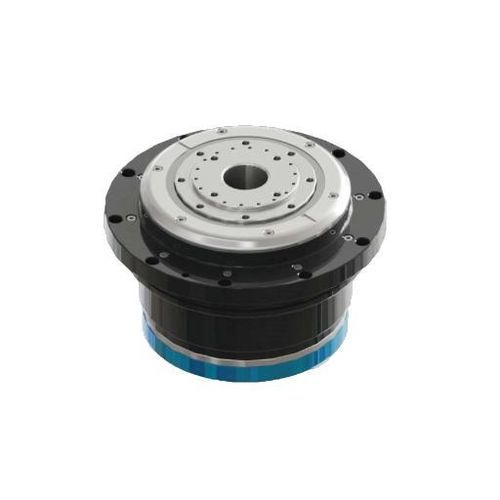

Motor-driven rotary table DZDV-320-250-68-105-A26

horizontalfor grindingdirect-drive

Overview
This DZDV-320 configuration balances rotational speed and moderate workpiece loading. It delivers up to 250 rpm and 332 Nm peak torque while supporting an allowable load of 120 kg, making it suitable for tool-grinding installations that do not require a 200 kg platform. Feedback is provided via a BiSS-C encoder (26-bit implementation noted in metadata).

Key features

• Optimized for tool-grinding processes with a speed/load compromise.
• Max speed 250 rpm; peak torque 332 Nm; allowable load 120 kg.
• High-resolution BiSS-C encoder for position feedback.
• Protection rating IP67 for industrial environments.
• Allowable workpiece inertia 1.2 kg·m² and allowable moment load 500 Nm.

Technical data
DZDV-320-250-68-105-A26

• Rated speed: 200 rpm
• Max. speed: 250 rpm
• Rated torque: 105 Nm
• Max. torque: 332 Nm
• Rated current: 8.5 A
• Max. current: 20 A
• Number of motor poles: 30
• Rated voltage: 220 V
• Clamp torque: /
• Clamp air pressure: /
• Positioning accuracy: Grating ±10 s; Time grating ±3 s
• Bidirectional repeated positioning accuracy: Grating ±2 s; Time grating ±1 s
• Protection degree: IP67
• Encoder type: BiSS-C (26-bit)
• Allowable load: 120 kg
• Allowable workpiece inertia: 1.2 kg·m²
• Allowable moment load: 500 Nm

Dimensions and mounting
Outline and mounting dimensions are available as a product diagram on the product page.
