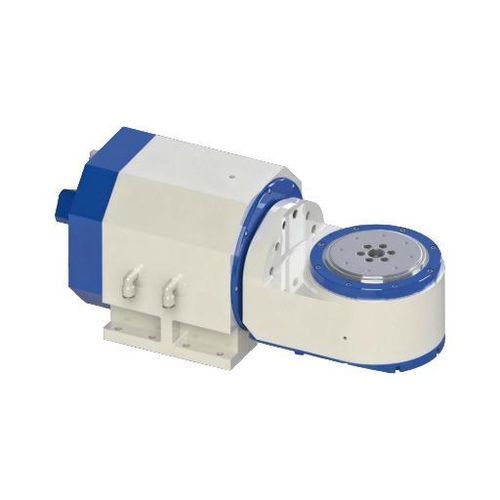

Motor-driven rotary table DZDA-110-100/200-30/10-A26W-A4 - A Axis / C Axishorizontalfor machiningcompact
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- horizontal
- Applications
- for machining
- Other characteristics
- compact, direct-drive, 5-axis, with torque-motor
- Diameter
110 mm
(4 in)
Description
Overview
The DZDA-110 is designed for limited machine envelopes and small workpieces. Its 110 mm C-axis face, compact single-arm layout and specified disk surface runout of 0.003 mm provide five-axis capability without an oversized rotary unit, suitable for integration into compact CNC machines.
Technical data (summary)
Model: DZDA-110-100/200-30/10-A26W-A4 - A axis / C axis; C-axis disk surface diameter: 110 mm; A-axis center height: 110 mm; C-axis disk height: 149 mm; C-axis center hole diameter: 20 mm; A-axis clamping: air (0.5–0.6 MPa); A-axis clamping torque: 60 N·m (@0.6 MPa); C-axis disk surface runout: 0.003 mm; C-axis disk radial runout: 0.005 mm; Driving type: torque motor direct drive (A & C axes); Driver voltage: 220 V; Speed (A/C): 100/100 rpm, 200/200 rpm; Torque (A/C) nominal/max: 29.6/52.5 N·m, 9/30 N·m; Current (A/C) nominal/max: 1.75/3.2 A, 0.7/3 A; Power S1 (A/C): 0.31 kW / 0.19 kW; Power S6 (A/C): 0.37 kW / 0.38 kW; Cooling: A-axis water cooling, C-axis natural cooling; Motor temperature sensor: KTY84-130; Positioning precision: ±10 (20) arc-sec; Repeatability: ±2 (4) arc-sec; Minimum unit: 0.001"; Load capacity: 10 kg; Weight: 42 kg; Protection: IP66.
Dimensions
A dedicated dimension diagram is available on the product page for overall layout and mounting interfaces.
Features / Technical specifications
Compatibility
Compatible with control systems: Lynuc, HNC, SYNTEC, FANUC, SIEMENS, MITSUBISHI.
The DZDA-110 is designed for limited machine envelopes and small workpieces. Its 110 mm C-axis face, compact single-arm layout and specified disk surface runout of 0.003 mm provide five-axis capability without an oversized rotary unit, suitable for integration into compact CNC machines.
Technical data (summary)
Model: DZDA-110-100/200-30/10-A26W-A4 - A axis / C axis; C-axis disk surface diameter: 110 mm; A-axis center height: 110 mm; C-axis disk height: 149 mm; C-axis center hole diameter: 20 mm; A-axis clamping: air (0.5–0.6 MPa); A-axis clamping torque: 60 N·m (@0.6 MPa); C-axis disk surface runout: 0.003 mm; C-axis disk radial runout: 0.005 mm; Driving type: torque motor direct drive (A & C axes); Driver voltage: 220 V; Speed (A/C): 100/100 rpm, 200/200 rpm; Torque (A/C) nominal/max: 29.6/52.5 N·m, 9/30 N·m; Current (A/C) nominal/max: 1.75/3.2 A, 0.7/3 A; Power S1 (A/C): 0.31 kW / 0.19 kW; Power S6 (A/C): 0.37 kW / 0.38 kW; Cooling: A-axis water cooling, C-axis natural cooling; Motor temperature sensor: KTY84-130; Positioning precision: ±10 (20) arc-sec; Repeatability: ±2 (4) arc-sec; Minimum unit: 0.001"; Load capacity: 10 kg; Weight: 42 kg; Protection: IP66.
Dimensions
A dedicated dimension diagram is available on the product page for overall layout and mounting interfaces.
Features / Technical specifications
- Model: DZDA-110
- C-axis disk surface diameter: 110 mm
- Center height (A axis): 110 mm
- Disk height (C axis): 149 mm
- C-axis center hole diameter: 20 mm
- Clamping: air (0.5–0.6 MPa) for A axis
- Clamping torque (A axis): 60 N·m (@0.6 MPa)
- Disk surface runout (C axis): 0.003 mm
- Disk radial runout (C axis): 0.005 mm
- Driving type: torque motor direct drive (A & C)
- Driver voltage: 220 V
- Speed (A axis / C axis) nominal/max: 100/100 rpm / 200/200 rpm
- Torque (A axis / C axis) nominal/max: 29.6/52.5 N·m / 9/30 N·m
- Current (A axis / C axis) nominal/max: 1.75/3.2 A / 0.7/3 A
- Power output S1 100% (A/C): 0.31 kW / 0.19 kW
- Power output S6 40% (A/C): 0.37 kW / 0.38 kW
- Cooling: A-axis water cooling; C-axis natural cooling
- Motor temperature sensor: KTY84-130
- Positioning precision: ±10 (20) arc-sec
- Repeated positioning precision: ±2 (4) arc-sec
- Minimum unit: 0.001"
- Load capacity: 10 kg
- Weight: 42 kg
- Protection rating: IP66
Compatibility
Compatible with control systems: Lynuc, HNC, SYNTEC, FANUC, SIEMENS, MITSUBISHI.
