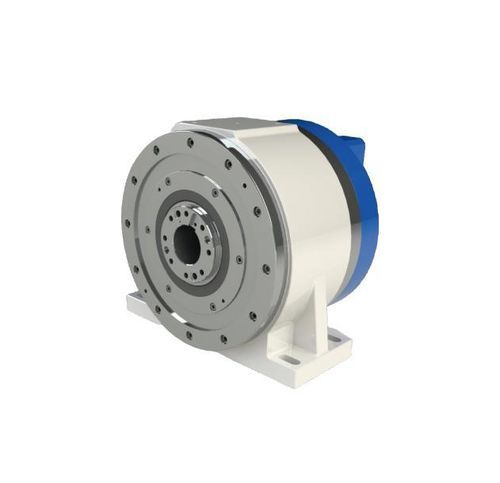

Motor-driven rotary table DZGD-180A31horizontalfor machiningdirect-drive
Add to favorites
Compare this product
Characteristics
- Operation
- motor-driven
- Configuration
- horizontal
- Applications
- for machining
- Other characteristics
- direct-drive, 4-axis
Description
Product overview
The DZGD-180A31 is a 180 mm direct-drive rotary table designed for supported CNC indexing and intermittent machining operations. It offers a standard allowable load of 50 kg and an increased capacity of 80 kg when used with the tailstock, delivering high peak torque for demanding cutting and positioning tasks.
Key parameters
Technical data
Model: DZGD-180A31
Rated speed: 200 rpm
Max. speed: 250 rpm
Rated torque: 73.7 Nm
Max. torque: 276 Nm
Rated current: 4.5 A
Max. current: 20.7 A
Number of motor poles: 44
Rated voltage: 220 V
Clamp torque: 235 Nm
Clamp air pressure: 0.5-0.6 MPa
Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
Bidirectional repeated positioning accuracy: Grating ±2 sec; Time grating ±1 sec
Encoder options: Mitsubishi, Fanuc, Siemens, BiSS-C (optional)
Allowable workplace inertia: 0.99 kg·m²
Allowable moment load: 500 Nm
Features & applications
Dimensions & drawing
Includes Ø180 mm face platform; detailed dimensional drawings and mounting information available from manufacturer documentation.
Specifications / Technical specifications
The DZGD-180A31 is a 180 mm direct-drive rotary table designed for supported CNC indexing and intermittent machining operations. It offers a standard allowable load of 50 kg and an increased capacity of 80 kg when used with the tailstock, delivering high peak torque for demanding cutting and positioning tasks.
Key parameters
- Face diameter: Ø180 mm
- Allowable load: 50 kg (80 kg with tailstock)
- Rated speed: 200 rpm, Max speed: 250 rpm
- Rated torque: 73.7 Nm, Max torque: 276 Nm
- Protection: IP67
Technical data
Model: DZGD-180A31
Rated speed: 200 rpm
Max. speed: 250 rpm
Rated torque: 73.7 Nm
Max. torque: 276 Nm
Rated current: 4.5 A
Max. current: 20.7 A
Number of motor poles: 44
Rated voltage: 220 V
Clamp torque: 235 Nm
Clamp air pressure: 0.5-0.6 MPa
Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
Bidirectional repeated positioning accuracy: Grating ±2 sec; Time grating ±1 sec
Encoder options: Mitsubishi, Fanuc, Siemens, BiSS-C (optional)
Allowable workplace inertia: 0.99 kg·m²
Allowable moment load: 500 Nm
Features & applications
- Direct-drive design for high torque and responsive indexing
- Tailstock option increases allowable load and workpiece stability for supported setups
- Multiple encoder options for integration with common CNC controls
- IP67 rating for use in standard manufacturing environments
- Suitable for CNC indexing, intermittent milling and multi-axis machine integration
Dimensions & drawing
Includes Ø180 mm face platform; detailed dimensional drawings and mounting information available from manufacturer documentation.
Specifications / Technical specifications
- Model: DZGD-180A31
- Face Diameter: Ø180 mm
- Allowable load: 50 kg (80 kg with tailstock)
- Rated speed: 200 rpm
- Max speed: 250 rpm
- Rated torque: 73.7 Nm
- Max torque: 276 Nm
- Rated current: 4.5 A
- Max current: 20.7 A
- Motor poles: 44
- Rated voltage: 220 V
- Clamp torque: 235 Nm
- Clamp air pressure: 0.5-0.6 MPa
- Positioning accuracy: Grating ±10 sec / Time grating ±3 sec
- Bidirectional repeatability: Grating ±2 sec / Time grating ±1 sec
- Protection level: IP67
- Encoder: Mitsubishi, Fanuc, Siemens, BiSS-C (optional)
- Allowable workplace inertia: 0.99 kg·m²
- Allowable moment load: 500 Nm
