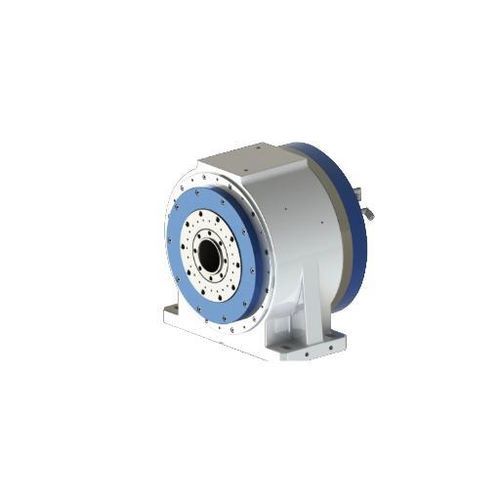

Electric rotary table DZDH-255-200-180-300-A26-A

horizontalIP67with torque-motor

Product overview
This DZDH-255 configuration prioritizes fixture support and sustained torque. A Ø260 mm table with 300 Nm rated torque, 600 Nm peak torque and tailstock-assisted capacity up to 150 kg is suited to larger workholding systems and demanding indexing operations.

Key parameters

• Face diameter: Ø260 mm
• Payload: 100 kg (150 kg with tailstock)
• Rated torque: 300 Nm; Max. torque: 600 Nm

Technical data (table)
Model: DZDH-255-200-180-300-A26-A
Rated speed: 200 rpm
Max. speed: 200 rpm
Rated torque: 300 Nm
Max. torque: 600 Nm
Rated current: 18 A
Max. current: 36 A
Motor poles: 48
Rated voltage: 220 V
Clamp torque: 500 Nm
Clamp air pressure: 0.5–0.6 MPa
Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
Bidirectional repeatability: Grating ±2 sec; Time grating ±1 sec
Protection degree: IP67
Encoder options: Mitsubishi, Fanuc, Siemens, BiSS-C (optional)
Allowable load: 100 kg (150 kg with tailstock)
Allowable workpiece inertia: 3 kg·m²
Allowable moment load: 1000 Nm

Applications & notes
Designed for integration in CNC machines and larger fixturing systems requiring sustained torque, tailstock support and IP67 protection. Suitable for precision indexing, rotary machining and heavy workholding.

Features / technical specifications

• Model: DZDH-255-200-180-300-A26-A
• Face diameter: Ø260 mm
• Rated / Max speed: 200 rpm / 200 rpm
• Rated torque: 300 Nm; Peak torque: 600 Nm
• Rated / Max current: 18 A / 36 A
• Motor poles: 48
• Rated voltage: 220 V
• Clamp torque: 500 Nm (air pressure 0.5–0.6 MPa)
• Positioning accuracy: Grating ±10 sec; Repeatability ±2 sec
• Protection degree: IP67
• Encoder options: Mitsubishi, Fanuc, Siemens, BiSS-C (optional)
• Allowable load: 100 kg (150 kg with tailstock)
• Allowable inertia: 3 kg·m²
• Allowable moment load: 1000 Nm
