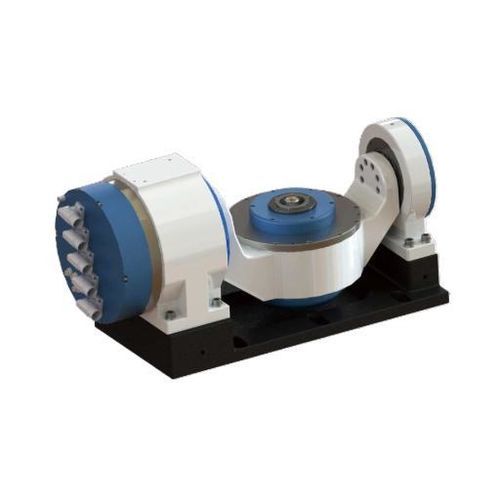

Rotary module for robots DZDC-125-250/250-157/50-A26-A/A

Rotary module for robots - DZDC-125-250/250-157/50-A26-A/A - Guangzhou Haozhi Industrial Co., Ltd

Rotary module for robots - DZDC-125-250/250-157/50-A26-A/A - Guangzhou Haozhi Industrial Co., Ltd

Rotary module for robots - DZDC-125-250/250-157/50-A26-A/A - Guangzhou Haozhi Industrial Co., Ltd - image - 2

Add to favorites

Compare this product

Go to the Guangzhou Haozhi Industrial Co., Ltd website for more information

Description

Product overview
The DZDC-125 cradle rotary head uses a cradle support for controlled tilting and continuous rotary positioning. Dual-axis oil cooling, 26-bit BiSS-C encoder feedback and separate vertical/horizontal workpiece load ratings support integration into machine tools and tool grinders.

Key features

Cradle structure for controlled tilt and continuous rotary positioning
Dual-axis oil cooling for thermal stability
26-bit BiSS-C encoder for high-resolution positioning
Workpiece load capacity: vertical 20 kg / horizontal 30 kg
High clamping torque and substantial pull force for secure tool holding

Technical data
Model: DZDC-125-250/250-157/50-A26-A/A
Rated torque (tilting / rotary): 157.5 Nm / 53.3 Nm
Maximum torque (tilting / rotary): 273 Nm / 88.75 Nm
Rated current (tilting / rotary): 4.6 A / 1.3 A
Maximum current (tilting / rotary): 12 A / 3.25 A
Rated speed (tilting / rotary): 200 rpm / 250 rpm
Maximum speed (both axes): 250 rpm
Driver voltage: 380 V (both axes)
Rated power S1 (tilting / rotary): 2.2 kW / 0.65 kW
Rated power S6 (tilting / rotary): 3.29 kW / 0.975 kW
Clamping torque: ≥235 Nm (tilting axis)
Clamping air pressure: 0.5–0.6 MPa
Encoder type: 26-bit BiSS-C (both axes)
Rotation angle: ±130° (tilting axis) / any angle (rotary axis)
Cooling method: oil cooling (both axes)
Positioning accuracy: ±10(20) arcsec (both axes)
Repeatability: ±2(4) arcsec (both axes)
Conical hole end-face runout: ≤0.001 mm (tilting axis)
Tool unloading air pressure: 0.6–0.65 MPa
C-axis parallelism: ≤0.005 mm
Radial runout (standard rod): proximal ≤0.002 mm, remote ≤0.005 mm
Pull force: ≥4000 N
Air curtain pressure: ≥0.2 MPa
Workpiece load capacity: vertical 20 kg / horizontal 30 kg
Total machine weight: 171 kg

Applications
Integration in tool grinders, CNC machining centers and automated production cells where controlled tilt and continuous rotary positioning are required.
