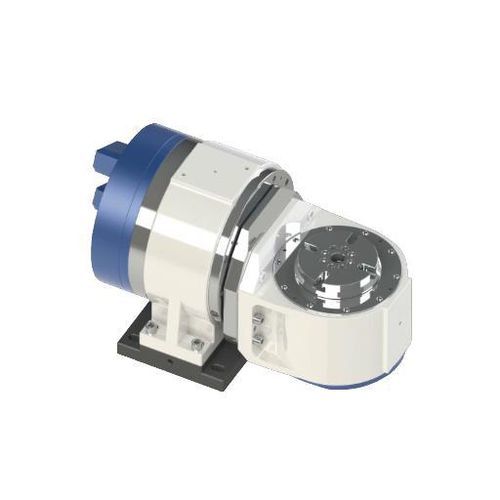

Motor-driven rotary table DZDA-110-100/200-30/10-A26W-A4 - A Axis / C Axis

horizontalfor machiningdirect-drive

Introduction
The DZDA-160 is a single-arm five-axis rotary table designed for compact integration of direct-drive A/C-axis motion. It provides two-axis access for machine-tool builders, simplified mechanical and electrical integration, and compatibility with common CNC control platforms.

Technical data (selection)
Model: DZDA-110-100/200-30/10-A26W-A4 — A axis / C axis
Disk surface diameter (mm): A axis: N/A | C axis: 110
Center height (mm): A axis: 110 | C axis: N/A
Disk height (mm): A axis: N/A | C axis: 149
Center hole diameter (mm): A axis: N/A | C axis: 20
Clamping way: A axis: Air (0.5-0.6 MPa) | C axis: N/A
Clamping torque (N·m): A axis: 60 (@0.6 MPa) | C axis: N/A
Runout (face / radial) (mm): A axis: N/A | C axis: 0.003 / 0.005
Driving type: Torque motor direct drive (A and C axes)
Driver voltage (V): 220 / 220
Rated/Maximum speed (rpm): A axis 100/100 | C axis 200/200
Rated/Maximum torque (N·m): A axis 29.6/52.5 | C axis 9/30
Rated/Maximum current (A): A axis 1.75/3.2 | C axis 0.7/3
Power output S1 100% (kW): A axis 0.31 | C axis 0.19
Power output S6 40% (kW): A axis 0.37 | C axis 0.38
Motor temperature sensor: KTY84-130 (both axes)
Positioning precision (arc-sec): ±10 (20) | Repeated positioning: ±2 (4)
Minimum unit: 0.001"
Load capacity (kg): 10
Weight (kg): 42
Protection level: IP66
Compatible controls: Lynuc, HNC, SYNTEC, FANUC, SIENMENS, MITSUBISHI

Features / Technical specifications

• Single-arm architecture for compact A/C-axis direct-drive integration.
• Torque-motor direct drive on both A and C axes for precise torque control and positioning.
• Air-actuated clamping where specified (0.5–0.6 MPa) with 60 N·m clamping torque (@0.6 MPa).
• High indexing accuracy: face runout 0.003 mm, radial runout 0.005 mm (C axis values).
• Electrical supply: 220 V driver voltage; motor sensor KTY84-130.
• Designed for five-axis CNC machine-tool integration with common controllers.
• Compact unit: 42 kg weight and 10 kg workpiece capacity for typical workholding applications.
