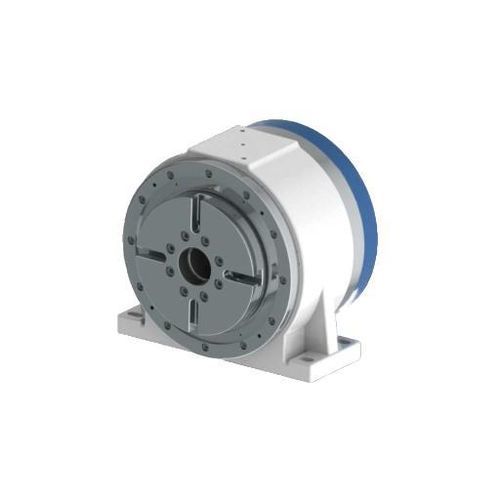

Motor-driven rotary table DZGD-180A13

horizontalfor machiningdirect-drive

Introduction
The DZGD-180A13 is a 180 mm direct-drive rotary table designed for integration with CNC control systems. Encoder feedback options include Mitsubishi, FANUC, Siemens and BiSS-C. The mechanical design supports a standard allowable load of 50 kg (80 kg with tail seat), rated speed 200 rpm and maximum speed 250 rpm, with peak torque up to 276 Nm. Protection degree IP67 and pneumatic clamp (235 Nm) enable use in industrial machining environments.

Technical data
DZGD-180A13
Rated speed: 200 rpm
Max. speed: 250 rpm
Rated torque: 73.7 Nm
Max. torque: 276 Nm
Rated current: 4.5 A
Max current: 20.7 A
Number of motor poles: 44
Rated voltage: 220 V
Clamp torque: 235 Nm
Clamp air pressure: 0.5–0.6 MPa
Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
Bidirectional repeated positioning accuracy: Grating ±2 sec; Time grating ±1 sec
Protection degree: IP67
Encoder type: Mitsubishi, FANUC, Siemens, BiSS-C (optional)
Allowable load: 50 kg (80 kg with tail seat)
Allowable workpiece inertia: 0.99 kg·m²
Allowable moment load: 500 Nm

Features / technical specifications

• Model: DZGD-180A13
• Table diameter: 180 mm
• Rated speed: 200 rpm
• Maximum speed: 250 rpm
• Rated torque: 73.7 Nm
• Peak torque: 276 Nm
• Rated current: 4.5 A; Max current: 20.7 A
• Number of motor poles: 44
• Rated voltage: 220 V
• Clamp torque: 235 Nm; Clamp air pressure: 0.5–0.6 MPa
• Positioning accuracy: Grating ±10 sec; Time grating ±3 sec
• Repeatability (bidirectional): Grating ±2 sec; Time grating ±1 sec
• Protection degree: IP67
• Encoder options: Mitsubishi, FANUC, Siemens, BiSS-C
• Allowable load: 50 kg (80 kg with tail seat)
• Allowable workpiece inertia: 0.99 kg·m²
• Allowable moment load: 500 Nm
