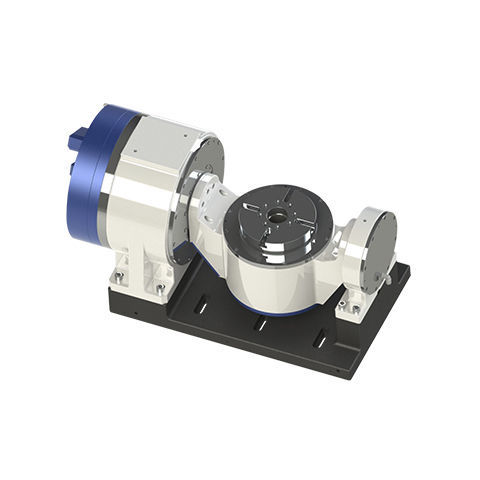

Motor-driven rotary table DZDC series

verticaltiltingfor machining

Mainly applied in CNC machine，working as the indexing components. Features 1、High efficiency With the maximum speed of revolution being 250rpm and different from the external-driving rotary table in worm and gear kind, it can achieve the processing at a high speed and with high efficiency. 2、Super Large Torque The torque motor originally developed adopts the innovative design, with the efficiency improving 63% than that of general motor, thereby ensuring the highly-efficient processing in super large torque. 3、Ultra-high Precision The rotary table uses the absolute type encoder with ultra-high precision, with the positioning accuracy being ±3″ and the repetitive positioning accuracy being ±1″. 4、High Clamping Force The clamping structure in innovative design has smaller volume than the traditional disc brake and improves 10 times in response speed and 3 times in clamping rigidity. 5、Power-off Self-locking The five-axis turntable with an innovative clamping mechanism can realize automatic locking of the A/C axis under extreme circumstances (such as abnormal power off of the mac hinetool) toprevent collision . 6、High Stability With the full simulation optimization for structure and an all-round test, it can ensure the stability of the whole machine after being used and verified by more than 10,000 DD rotary table clients.
