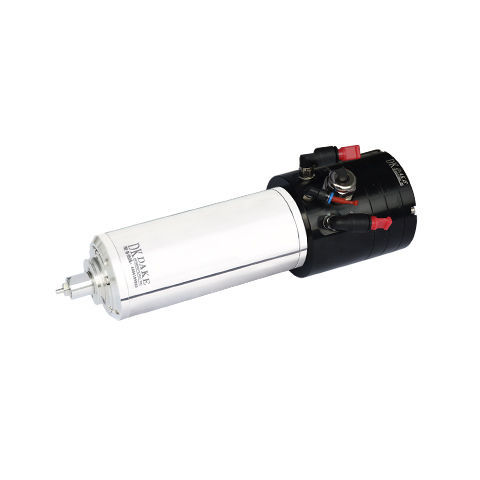

Forming motor spindle DGZ-60C4

machiningmotorizedwater-cooled

This product is characterized with a compactstructure, light weight, small inertia, small vibration and low noise andothers, which can achieve the forming with a high speed, high precision andhigh stability. Features 1.High precision: The static rotary accuracy ofthe motorized spindle at the spindle end is ≤0.002mm and the dynamic rotaryaccuracy is ≤0.006mm (delivery standard), so it has unparalleled highprecision, achieving the forming capacity with higher precision. 2.High power and high torque output: The built-inmotor is designed based on the consideration of the characteristics of thedriver performance. It is built-in with a three-phase variable frequencyasynchronous efficient motor so that its needed speed range, its output power,torque and machining capacity are greatly improved. 3.High configuration: With the automatic cutterchange function, and 2million times of cutter change, it is equipped with themotor temperature sensor and spindle speed sensor (optional). Also theinternational well-known ball bearing is used. 4.High energy-saving: The seal of the spindle hasreliable performance and the air consumption of the dust proof air seal isminimized, which helps to reduce operation cost of the end-user. 5.Low failure rate: The product is mature andstable, and the stability of the spindle is much better than that of peerproducts.
