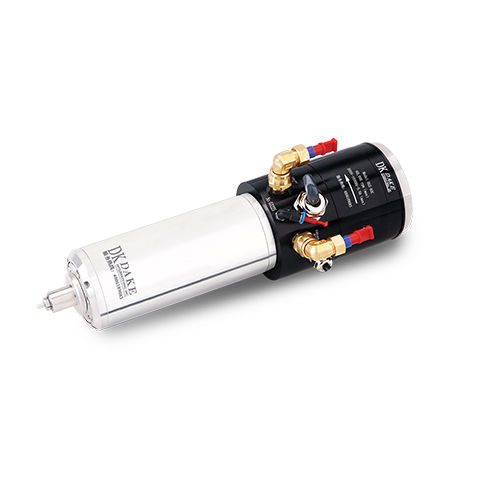

Machining motor spindle DGZ-60C

drillingmotorizedwater-cooled

The spindle ,which is a ball bearing high-speed spindle and the max speed is 60000rpm, appliued for PCB industry.Mainly used for the processing of routing machines and drilling machines . The spindle is with compact structure, light weight, inertia, small vibration and low noise, which can achieve high speed, high precision and perfect stability of routing process. Features 1. High-precision: The spindle for PCB industry has the static rotary precision ≤ 0.002mm and dynamic precision ≤ 0.006mm (delivery standard), has the characteristic of incomparable high precision, and can achieve higher drilling CPK values. 2. High power and large torque output: Combined with the performance characteristics of driver, by adopting the design of embedded motor and the built-in three-phase variable-frequency asynchronous high-efficiency motor, it improves the output power and torque within the range of speed required by machining, and substantially enhances the machining capacity. 3. High configuration: The spindles for the industry all have the automatic tool changing function with the service life of the tension mechanism up to 2,000,000 times, and also have the protective functions for the temperature sensor of motor, the speed sensor of shaft core, etc. The ball bearings adopt the international famous brands. 4. High energy saving: On the premise of guaranteeing the performance, the gas consumption of dust-proof sealing is optimized to the minimum, in order to save the usage cost of the end users.
