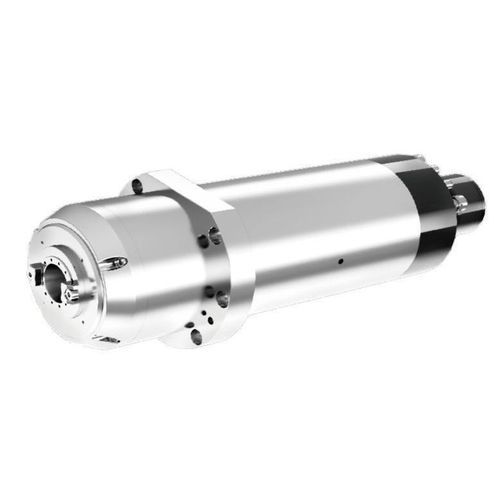

Engraving spindle DGZYX-12024

millingmagnetic-driveBT 30

Overview
This DGZYX-12024 version pairs a permanent-magnet drive with a mechanical BBT30 tool-change interface. With a maximum torque of 22 Nm and a top speed of 24,000 rpm, it is suited to machine tools that do not require automatic spindle-side tool release.

Basic specifications
Mounting diameter: Φ120 mm
Rated speed: 9,000 rpm
Maximum speed: 24,000 rpm
Rated power (S1): 7.5 kW
Rated torque (S1): 7.9 Nm
Maximum torque: 22 Nm

Technical data
Spindle model: DGZYX-12024/7.5-BFEWVM
Rated voltage (V): 220/380 (selectable)
Motor type: Permanent Magnet Motor
Front bearing specification: 7009*2
Lubrication method: Grease lubrication
Tool holder type: BBT30
Through-spindle coolant: None
Tool change method: Mechanical tool change

Features / technical specifications

• Model: DGZYX-12024/7.5-BFEWVM
• Drive type: Permanent-magnet motor
• Mounting diameter: 120 mm
• Rated power (S1): 7.5 kW
• Rated torque (S1): 7.9 Nm
• Maximum torque: 22 Nm
• Rated speed: 9,000 rpm
• Maximum speed: 24,000 rpm
• Rated voltage: 220/380 V (selectable)
• Front bearing: 7009*2
• Lubrication: Grease
• Tool holder: BBT30
• Tool change: Mechanical tool change
• Through-spindle coolant: None
