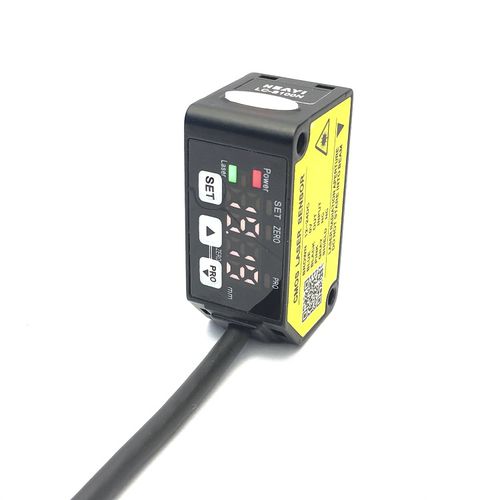

Laser distance sensor LC-S400MP
4-20 mA0-5 VIP65

Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65
Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65
Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65 - image - 2
Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65 - image - 3
Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65 - image - 4
Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65 - image - 5
Laser distance sensor - LC-S400MP - Guangzhou HeYi Electronic Technology Co., Ltd - 4-20 mA / 0-5 V / IP65 - image - 6
Add to favorites
Compare this product

Characteristics

Technology
laser
Output
4-20 mA, 0-5 V
Protection level
IP65
Other characteristics
for the food industry, for medical applications
Range

200 mm, 600 mm
(8 in, 24 in)

Description

Usage High precision object detection sensor Theory optical sensor Output analog output and switching output Application chemical/robotics/electronics/industry/packaging/plastic machinery industry/textile machinery industry/lithium battery/semiconductor industry Temperature characteristic 0.03%F.S./°C Light source Red laser, calss 2, Max. output:1mW,Wavelength of light-emitting beam: 655nm Beam diameter - about φ500μm Supply voltage - 12V to 24V DC±10% Ripple P - P10% Consumption current - Lower than 40mA (Power supply voltage 24V DC), Lower than 60mA (Power supply voltage 12V DC) Control output - Max. load current: 50mA Light ON/, Dark ON, Switchable Short circuit protection - Provide with (automatic recovery type) Analog output - Output range: 0V-5V(Alarm 5.2V) Output impedance:100Ω Reaction time - 1.5ms/5ms/10ms Switchable External input - NPN without contact input, valid: 0V to + 1.2V DC input impedance: 10KΩ Cable - 2M Composite Cable with 0.15mm*5 Core Housing - Body Shell: Aluminum Castings, Front Cover: Propylene
