Laser displacement sensors

Measuring range: 10 mm - 500 mm
Linearity: 0.01 % - 0.02 %
Measuring rate: 0.3 kHz - 8 kHz

Small, powerful and fast, the optoNCDT 1420 laser sensors have been raised to a new level for advanced automation applications. The measuring rates have been doubled to up to 8 kHz, making them the fastest ...

Measuring range: 2 mm - 500 mm
Measuring rate: 250 Hz - 10,000 Hz
Supply voltage: 11 V - 30 V

The innovative laser sensor optoNCDT 1900 offers a unique combination of high speed, compact design and accuracy. The sensor is used for dynamic displacement, distance ...

Measuring range: 10 mm - 500 mm
Measuring rate: 0.3 kHz - 4 kHz

... unique combination of speed, size, performance and application versatility in the range of compact triangulation sensors. The lightweight sensor with integrated controller is designed for dynamic measurements ...

Measuring range: 10 mm - 1,000 mm
Measuring rate: 1,000 Hz

... manufactured by WayCon, and is a laser sensor that has a tiny visible laser spot that enables an accurate orientation of the sensor. It also has the capacity to measure ...

Measuring range: 10, 30, 70, 160, 400 mm
Measuring rate: 660 Hz

Ranges10, 30, 70, 160, 400 mm Repeatability max.10 μm Linearity max.±0.1 % Frequency max.660 Hz Output0...5 V, 4...20 mA, PNP Protection classIP67

Measuring range: 4 mm - 300 mm
Measuring rate: 5,000 Hz

- Measurement ranges up to 300 mm - Resolution up to 0.5 μm - Protection class IP67 - Working temperature -10 bis +45 °C - External input setting function - Analog output 0...10 V, 3.2...20.8 mA - PNP or NPN output type

The BD series laser displacement sensors can measure thickness, width, level difference, disparity, curve, evenness of target objects by detecting the amount of displacement. ...

Measuring range: 30 mm - 1,000 mm
Measuring rate: 10 Hz - 55 Hz
Power consumption: 0.7 W

... for more installation requirements. Description A CMOS laser sensor optimum for simple measurements, high precision and standard precision digital display laser distance measuring ...

Measuring range: 30 mm - 85 mm
Measuring rate: 10 Hz - 55 Hz
Power consumption: 0.7 W

... interfaces to easily integrate and collect infomation for PLC or controlling devices. Description Intelligent CMOS laser sensor optimum for short distance measurements, with precise detection,stable ...

Measuring range: 30 mm - 85 mm
Measuring rate: 10 Hz - 55 Hz
Power consumption: 0.7 W

PDB series displacement sensor with a center distance , and resolution at 10μm. Streamlined appearance, but strong plastic housing, also suitable for various environments, oblique 45° cable outlet, makes ...

Measuring range: 0.1 m - 150 m
Measuring rate: 10 Hz - 50 Hz

... is an opto-electronic sensor for linear displacement measurement • Its RS-232 serial interfaces simplifies the setup. • Its robust and compact construction, low power consumption and its measurement ...

Measuring range: 0.1 m - 150 m

The LDM43 is an opto-electronic sensor for linear displacement measurement. Thanks to its PROFIBUS DP and SSI interfaces this product can easily be integrated into your processes. Its robust and compact ...

Measuring range: 0.5 m - 500 m
Measuring rate: 100 Hz - 2,000 Hz

... integrated heating, status display and a sight mechanism. The alignment to the measurement objective is easy by the red laser dot of the pilot laser. The modular construction of the device enables the ...

Measuring range: 13 mm - 650 mm

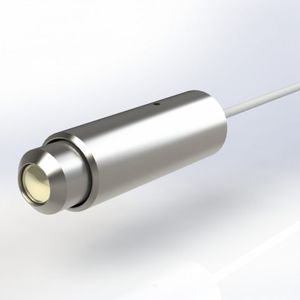

Compact sensor head for general purpose featuring many convenience features. The C01 is the standard sensor head type for the PICOSCALE Interferometer. Due to its collimated output beam, the compact ...

Measuring range: 13 mm - 5,000 mm

Sensor head with collimated beam optimized for long distances and retro-reflector targets. The C03 is a sensor head type optimized for long working distances and using retro-reflectors as target. The ...

Measuring range: 10 mm

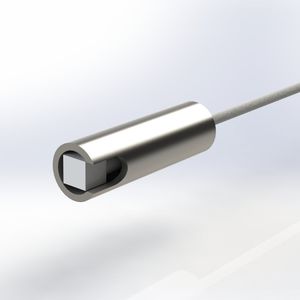

Sensor head with focused beam with high alignment tolerance. The F01 is a sensor head type with focused probe beam. This allows to measure displacements of small targets. Furthermore, ...

Linearity: 0.1 %
Supply voltage: 12 V - 24 V
Ambient temperature: 0 °C - 50 °C

... different, the point can be accurately selected to ensure stability and reliability of the sensor output 3. The most cost-effective laser displacement sensor: The ...

Measuring range: 10 mm
Linearity: 0 %
Ambient temperature: 0 °C - 50 °C

... series is a high-precision non-contact displacement sensor based on the principle of laser triangulation distance measurement. It has a direct/oblique compatible structure and can detect ...
