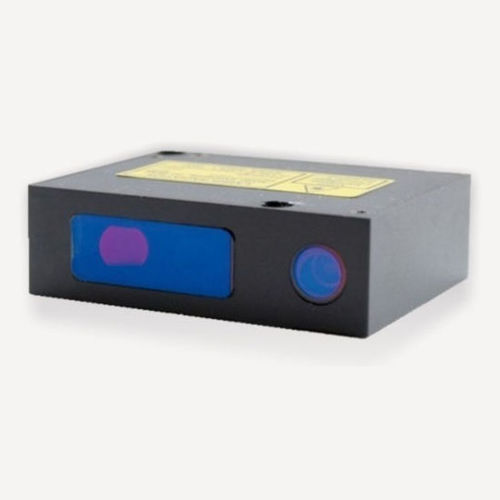

Laser triangulation displacement sensor RF603HS series linearnon-contactdigital
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Contact / non-contact
- non-contact
- Technology
- laser triangulation
- Output signal
- digital
- Protection class
- IP67
- Applications
- industrial
- Other characteristics
- compact, high-speed
- Measuring range
Max.: 1,250 mm
(49.21 in)Min.: 2 mm
(0.08 in)- Linearity
0.1 %
- Measuring rate
160 kHz
- Power consumption
4.8 W
(0.01 hp)- Supply voltage
Max.: 36 V
Min.: 9 V
- Ambient temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
The sensors are intended for non-contact measuring and checking of position, displacement, dimensions, surface profile, deformation, vibrations, sorting and sensing of technological objects as well as for measuring levels of liquid and bulk materials.
•Universal, high-speed laser sensor in compact case
•Available in Red and Blue diode wavelengths
•Ideal for capturing fast events and road profiling
