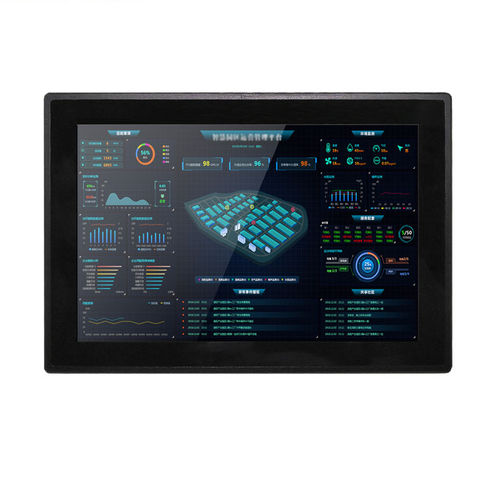

LCD panel PC WAR-101C-RM10

10.1"1280 x 800Arm® Cortex®-A72 Dual-core

industrial control，detection device，instruments and meters，security monitoring，medical apparatus and instruments, intelligent terminals embedded high-end application. Basic parameters CPU：Dual Cortex-A72 large core + Quad Cortex-A53 small core, frequency 1.8GHz GPU: Quad-core ARM Mali-T860 Memory：2GB DDR4 (4G as option) EMMC：8GB EMMC (16G as option) Display screen Size：10.1 inch Resolution：800×1280 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance touch screen Hardware interface 1 channel DB9 interface（COM7） 1 channel RS-485 interface（COM6）or 1 channel RS-232( COM8 ) 1 channel HDMI interface. 1 channel USB Device interface，support ADB connect to PC to exchange date and debug application . 1 channel USB Host 3.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. 2 channel USB Host 2.0 interface, support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 1000M Ethernet interface. 1 channel SD/MMC slot,support TF card. 1 channel SIM card interface . 1 channel 3.5 audio interface . 1 channel WIFI . 1 channel DC 5.5-2.1 (DC 12V ) power iuput interface. 1 channel power button switch . Built-in 4G Module (optional) .
