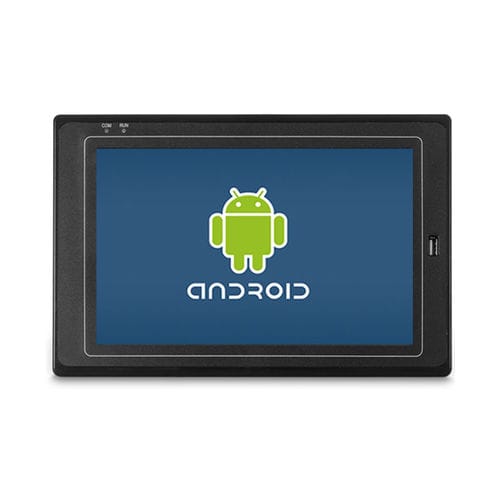

LCD panel PC WAR-101C-SP10

10.1"1280 x 800Quad Core Cortex A9

Product model：WAR-101C-SP10/WAR-101R-SP10 size：10.1 inch resolution：1280×800 CPU: Cortex A9 Architecture，frequency 1.4GHZ Memory: 1GB DDR3 Flash：8GB NandFlash Basic parameters CPU：Quad-core Cortex®-A9 ，frequency 1.4GHz Memory：1GB DDR3 Flash：8GB NandFlash Display screen Size：10.1 inch Resolution：1280×800 Wide-temperature type，16000k colors or 24 true colors LED backlight：lifetime > 25000 hours Touch screen Capacitance/Resistance touch screen Hardware interface 4 channel 3-wire RS-232 serial port（COM1,COM2,COM3,COM4）. 2 channel RS-485（COM1、COM2）multiplex as RS-232 （COM1、COM2）.（Signal isolated as optional） 1 channel isolated CAN bus.（optional）. 1 channel USB device interface,support ADB connect to PC to exchange date and debug application . 2 channel USB Host interface，support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 100M Ethernet interface. 1 channel SD/MMC slot,support TF/mini SD card. 1 channel 3.5mm audio output interface. 1 channel WIFI interface.（optional） 1 channel DC 12V~24V，industrial power solution，higher reliability. OS Android 4.4.2 Defend degree IP65 (front panel) Working environment power：DC 12V-24V （24V as recommendation) working temperature：-10~55℃ storage temperature：-20~80℃ working humidity：10～90%RH
