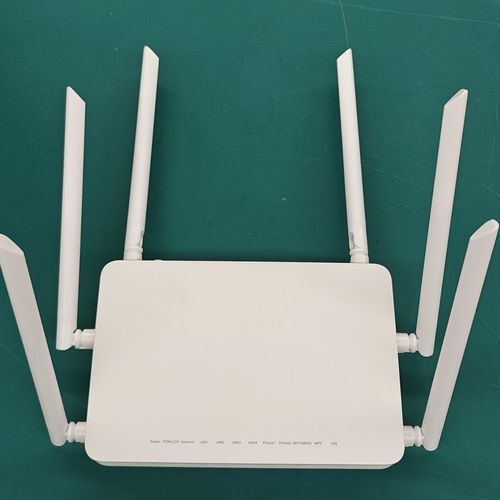

Compact optical network unit GPU040-4G0F2P-AX

wirelessmulti-functionwith external power adapter

Product Overview
The GPU040-4G0F2P-AX is a compact GPON ONU terminal designed for enterprise and carrier access. Housed in a plastic enclosure, it integrates a GPON interface, Gigabit Ethernet switching and voice ports, offering stable ITU G.984-compliant optical access and broad interoperability with mainstream OLTs.

Product Features

• High-capacity access: PON rates up to 2.5 Gbps downstream / 1.25 Gbps upstream; supports up to 1:128 split ratio and typical reach up to 20 km.
• Service control and QoS: supports 802.1p and VLAN (802.1Q) for differentiated service priorities and bandwidth assurance.
• Comprehensive OAM: supports standard OMCI and extended OMCI (CT/1.3) for configuration, performance monitoring, fault and security management.
• Interoperability: compliant with CT/1.3 and interoperable with major OLT vendors to simplify deployment and reduce integration costs.

Product Performance
PON Port: Receiver sensitivity < -28 dBm; TX optical power 0–4 dBm; transmission distance up to 20 km; wavelength TX 1310 nm / RX 1490 nm; SC/UPC optical interface.
LAN Ports: 4 × GE (RJ45), 10/100/1000 Mbps adaptive.
POTS: 2 × FXS (RJ11); supported codecs G.711/G.723/G.726/G.729; fax T.30/T.38.
USB: 1 × USB 3.0.
Wi‑Fi: IEEE 802.11b/g/n/ac/ax, MIMO 4T4R, aggregate up to 1800 Mbps.
Environment: Operating temperature -10°C to +55°C; humidity 10%–90% non‑condensing.
Power: 12 V / 2.0 A (external adapter); power consumption ≤ 18 W.
Dimensions: 205 × 140 × 37 mm; Weight < 600 g.

Order Information
GPU040-4G0F2P-AX | GPON ONU, plastic enclosure, 1 GPON port, 4×GE, 2×POTS, Wi‑Fi 6, external power adapter | Set

Technical Specifications

• Model: GPU040-4G0F2P-AX
• PON: 2.5 Gbps downstream / 1.25 Gbps upstream, SC/UPC, sensitivity < -28 dBm, TX 0–4 dBm
• LAN: 4 × Gigabit Ethernet (RJ45), 10/100/1000 Mbps
• Voice: 2 × FXS (RJ11), codecs G.711/G.723/G.726/G.729, fax T.30/T.38
• Wireless: IEEE 802.11b/g/n/ac/ax, MIMO 4T4R, up to 1800 Mbps
• USB: 1 × USB 3.0
• Power: 12 V / 2.0 A (external adapter), ≤ 18 W
• Operating temp.: -10°C to +55°C; Humidity: 10%–90% (non‑condensing)
• Dimensions: 205 × 140 × 37 mm; Weight < 600 g
• Standards & Management: ITU G.984 compliance, OMCI/CT1.3 support, QoS (802.1p), VLAN (802.1Q)
