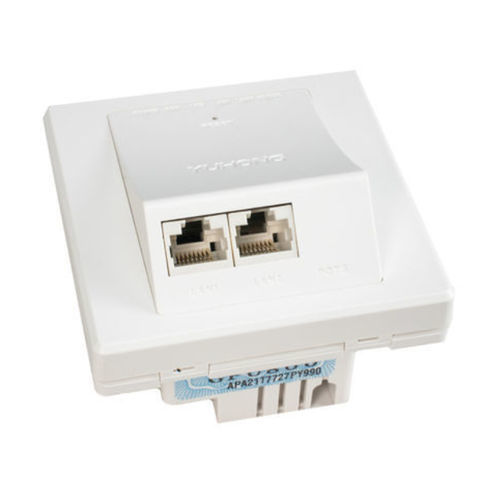

Compact optical network unit GPU860-2G0F0P

low-consumptionlow-powerbox

Product overview
The GPU860 panel-type ONU is a GPON terminal engineered for enterprise and campus fiber access. It integrates a GPON uplink with dual Gigabit Ethernet and FXS voice support, complies with ITU G.984, and interoperates with mainstream OLT vendors to enable cost-efficient panel/86-type deployments.

Product features

• Compact panel form factor: 86×86 mm box for buckle/card installation, optimized heat dissipation and high port density; dust-proof base protects pigtails and fiber connectors.
• High access performance: PON line rates downstream 2.5 Gbps / upstream 1.25 Gbps; supports up to 1:128 split ratio and coverage up to 20 km.
• Service control and QoS: 802.1p and 802.1Q support for bandwidth control and service prioritization.
• OAM and management: Standard OMCI and CT/1.3 extended OMCI for configuration, performance monitoring, fault and security management.
• Interoperability: Compatible with mainstream GPON OLT equipment to support mixed-vendor deployments and reduce construction costs.

Product performance (summary)
Item: GPU860-2G0F0P
PON port: Receiver sensitivity: < -28 dBm; Transmit optical power: 0 ~ +4 dBm; Transmission distance: up to 20 km; Wavelength: TX 1310 nm / RX 1490 nm; Optical interface: SC/UPC connector
LAN ports: 2 × GE (RJ45), 10/100/1000 Mbps adaptive
POTS port: FXS (RJ11), codecs G.711/G.723/G.726/G.729, fax T.30/T.38
Operating environment: Temperature: -30°C to +70°C; Humidity: 10%–90% non-condensing
Power supply: AC 100–240 V, 50/60 Hz (built-in); Power consumption: ≤ 8 W
Size (L×W): 86 mm × 86 mm; Weight: < 300 g

Order information
Product model: GPU860-2G0F0P
Product description: GPON ONU, panel type, 1 GPON port, 2 GE ports, built-in AC power supply
Unit: Set

Functional positioning for enterprise networks
The GPU860 is intended for enterprise campus networks, office buildings and telecom closets where compact, interoperable fiber access is required. It supports voice/data convergence and is suitable for deployments that require integration with standard OLT systems.

Technical architecture and applications
Compliant with ITU G.984, supporting 2.5/1.25 Gbps PON line rates, up to 1:128 split and up to 20 km reach. Provides QoS (802.1p/802.1Q), OMCI and CT/1.3 for remote provisioning and monitoring to simplify operations and reduce deployment costs.

Typical use scenarios

• Enterprise campus: high user density, long-reach fiber access and differentiated QoS services.
• Office buildings: converged voice and data via dual GE ports and FXS voice support.

Technical specifications

• Model: GPU860-2G0F0P
• Standard: ITU G.984 GPON
• PON line rate: Downstream 2.5 Gbps / Upstream 1.25 Gbps
• Splitting ratio: up to 1:128
• Optical receiver sensitivity: < -28 dBm
• Optical transmit power: 0 ~ +4 dBm
• Optical reach: up to 20 km
• Optical interface: SC/UPC connector
• LAN: 2 × GE (RJ45), 10/100/1000 Mbps adaptive
• Voice: FXS (RJ11), codecs G.711/G.723/G.726/G.729, fax T.30/T.38
• OAM/Management: OMCI, CT/1.3 extensions
• QoS: 802.1p / 802.1Q
• Power: AC 100–240 V, 50/60 Hz (built-in), typical ≤ 8 W
• Operating temperature: -30°C to +70°C
• Humidity: 10%–90% (non-condensing)
• Size: 86 mm × 86 mm
• Weight: < 300 g
