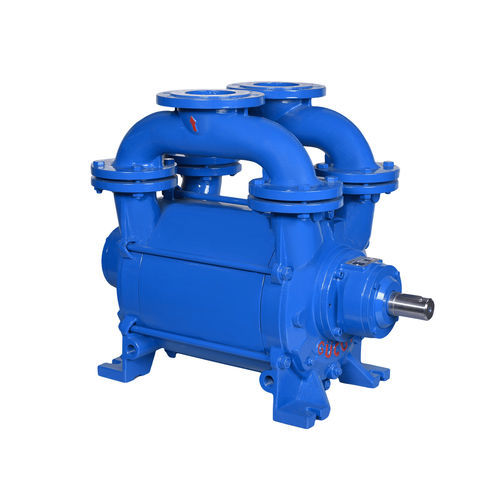

Venturi vacuum pump GMVT 275/300lubricatedsingle-stagesuction
Add to favorites
Compare this product
Characteristics
- Technology
- Venturi
- Lubrication
- lubricated
- Number of stages
- single-stage
- Applications
- suction, liquids
- Other characteristics
- stainless steel, low energy consumption
- Ultimate vacuum
Min.: 33 mbar
(0.48 psi)Max.: 400 mbar
(5.8 psi)- Flow rate
Min.: 650 m³/h
(22,954.53 ft³/h)Max.: 800 m³/h
(28,251.73 ft³/h)- Power
22 kW
(29.91 hp)- Operating temperature
70 °C, 100 °C
(158 °F, 212 °F)- Length
1,505 mm
(59 in)- Width
460 mm
(18.11 in)- Height
730 mm
(28.74 in)- Noise level
75 dB
- Weight
237 kg, 460 kg
(522.5 lb, 1,014.13 lb)
Description
High suction capacity, low energy Consumption.
Plates are stainless steel.
Safe and efficient operation.
Able to pump every kind of gases and vapors.
Works quiet and reduced vibration.
No need to lubrication.
Low operation and investment cost.
Minimum maintenance with high efficiently.
No metallic contact of the rotating parts.
Able to use every medium with wide material alternatives.
Able to pump less liquid with gases.
Provide 0 leakproofing with mechanical seal.
