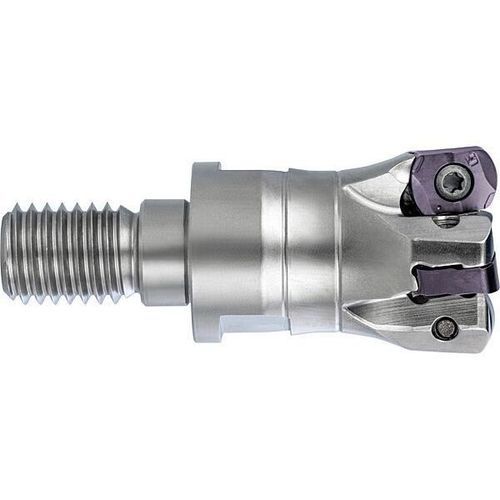

Indexable insert milling cutter 28001 seriesslotcopyingroughing
Add to favorites
Compare this product
Characteristics
- Construction
- indexable insert
- Type
- slot, copying, roughing
- Treated material
- for non-ferrous materials, for hardened steel, for titanium alloys, for cast iron, for stainless steel, for steel
- Other characteristics
- screw-in, helix angle, right-hand, with internal coolant
Description
Product overview
High-feed milling cutters with indexable inserts and screw-in threads designed for use with double-sided indexable inserts type XNMX 07. Compatible with specific tool holders for screw-in milling cutters. Available in many variants.
Key features
Product notes
for double-sided indexable inserts type XNMX 07 • for tool holder for screw-in milling cutter art. no. 4199 • order Torx Plus wrench art. no. 28901 8.000 separately • use code 16.000 with reduced parameters, max. ap=0.7 mm, max. fz=0.8 mm • We recommend using torque wrench 4915 (8.000) and interchangeable blade 4960 (15.000)
Material suitability (ISO code)
P - Steel, high-alloyed steel
M - Stainless steel
K - Grey cast iron, spheroidal graphite / malleable cast iron
N - Aluminium and other non-ferrous metals
S - Special, super and titanium alloys
H - Hardened steel and chilled cast iron
SKU
SKU: 28001
Specifications
High-feed milling cutters with indexable inserts and screw-in threads designed for use with double-sided indexable inserts type XNMX 07. Compatible with specific tool holders for screw-in milling cutters. Available in many variants.
Key features
- Connection code (machine side): screw-in thread
- Internal cooling: with
- Standard: Company standard
- Surface: nickel plated
- Cutting direction: right-hand
- Identification (Article No.): New
- Helical (article option): helix
- Grooving capability (article option): slotting
- Ramping capability (article option): ramping
- Application mode: roughing
- Capability: copying
Product notes
for double-sided indexable inserts type XNMX 07 • for tool holder for screw-in milling cutter art. no. 4199 • order Torx Plus wrench art. no. 28901 8.000 separately • use code 16.000 with reduced parameters, max. ap=0.7 mm, max. fz=0.8 mm • We recommend using torque wrench 4915 (8.000) and interchangeable blade 4960 (15.000)
Material suitability (ISO code)
P - Steel, high-alloyed steel
M - Stainless steel
K - Grey cast iron, spheroidal graphite / malleable cast iron
N - Aluminium and other non-ferrous metals
S - Special, super and titanium alloys
H - Hardened steel and chilled cast iron
SKU
SKU: 28001
Specifications
- Product family: High feed milling cutters (indexable inserts, screw-in threads)
- Compatible insert type: XNMX 07 (double-sided)
- Recommended tool holder: tool holder for screw-in milling cutter (reference provided on product page)
- Auxiliary tools: Torx Plus wrench (art. no. 28901 8.000) sold separately
- Alternative code usage: code 16.000 with reduced machining parameters
- Maximum axial depth of cut (ap) when using reduced parameters: 0.7 mm
- Maximum feed per tooth (fz) when using reduced parameters: 0.8 mm
- Recommended torque wrench: 4915 (8.000)
- Recommended interchangeable blade: 4960 (15.000)
- Cooling: internal cooling enabled
- Surface finish: nickel plated
- Cutting direction: right-hand
