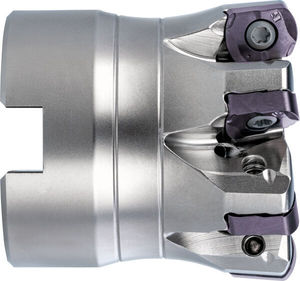

Indexable insert milling cutter 28000 series

slotprofilingcopying

Overview
High feed milling cutters with indexable inserts, straight shank Weldon.

Key features

• Connection code machine side: DIN 6535-HB
• Internal cooling: with
• Standard: Company standard
• Surface: nickel plated
• Cutting direction: right-hand
• Identification (Article No.): New
• Suitable for helical, slotting, ramping, roughing and copying applications

Product information

• For double-sided indexable inserts type XNMX 07
• Order Torx Plus wrench (art. no. 28901 8.000) separately
• Use code 16.000 with reduced parameters: max. ap = 0.7 mm, max. fz = 0.8 mm
• We recommend using torque wrench 4915 (8.000) and interchangeable blade 4960 (15.000)
• Available in many variants

ISO code - material suitability (legend)
P - Steel, high-alloyed steel
M - Stainless steel
K - Grey cast iron, spheroidal graphite / malleable cast iron
N - Aluminium and other non-ferrous metals
S - Special, super and titanium alloys
H - Hardened steel and chilled cast iron

Caractéristiques / spécifications techniques

• SKU: 28000
• Tool type: High feed milling cutter with indexable inserts
• Shank: straight shank (Weldon)
• Insert type: double-sided indexable inserts XNMX 07
• Internal coolant: yes (internal cooling)
• Surface finish: nickel plated
• Cutting direction: right-hand
• Recommended max. axial depth of cut (ap): 0.7 mm (when using reduced parameters/code 16.000)
• Recommended max. feed per tooth (fz): 0.8 mm (when using reduced parameters/code 16.000)
• Accessory recommendations: Torx Plus wrench (art. no. 28901 8.000) ordered separately; recommended torque wrench 4915 (8.000); interchangeable blade 4960 (15.000)
• Application icons indicate suitability for helical, slotting, ramping, roughing and copying operations
