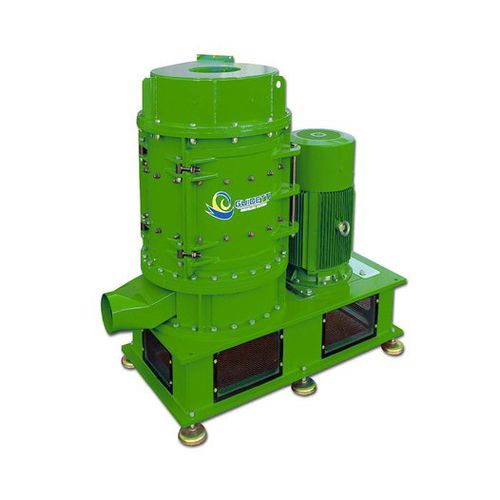

Rotary drum mill Turbo 900/5
verticalfor cablesstraw

rotary drum mill
rotary drum mill
rotary drum mill
rotary drum mill
rotary drum mill
Add to favorites
Compare this product


rotary drum
Product applications
for cables, straw, copper, for aluminum
Other characteristics
high-speed, micronization
for recycling
Machine length

2,197 mm
(86 in)

Machine width

1,360 mm
(54 in)

Machine height

1,722 mm
(68 in)

Machine weight

4,640 kg
(10,229 lb)


Progressive dimensional reduction with no need of wearing grinding elements. The TURBO refiner is Guidetti’ s top jewel! Metals’ separation, further to the refining process is simply perfect! The TURBO refiners’ range, introduces a new concept of dry-milling, which consists in the self-grinding of the materials through the collision and the friction among the particles, thanks to vortex, changes in pressure and fluid vibrations which allow a progressive dimensional reduction with no need of grinding elements. The advantages of the “TURBO” refiners are as follows: A reduction of energy consumption and lower maintaining costs compared to any other type of mill. Concentration of the wear on small surfaces, which can be easily replaced. A very simple operating system and small overall dimensions Wide range of applications: Minerals: clay, coal, graphite, gypsum, marble, lime, limestone, ceramic materials; Plastics: thermoplastics, caoutchouc, rubber, resin, foils, cellulose; Chemicals: gelatin, pigments, lamp-black, metallic salts, carbonates, sulphates, chlorides; Metals: aluminium, magnesium, copper, wolfram, carbide, chrome oxide, nickel; Foods: proteins, starch, cereals, seed, bran, husks, vegetables, spices, legumes; Miscellaneous: woods, bark, peat, straw, yeast, husks, fibres, bones, paper, wax, fats.


Turbo Mill
Turbo Mill
