Incremental rotary encoder M136 series

magneticblind-shaftnon-contact

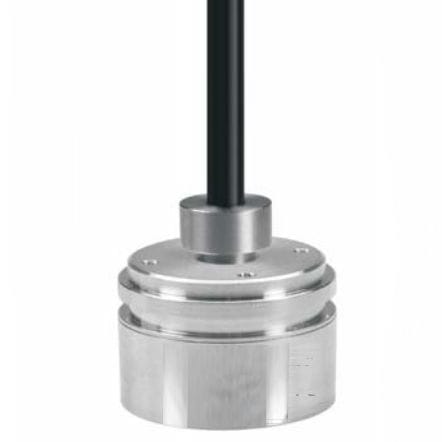

The series M136 magnetic rotary encoders are designed for light industrial applications that require up to twelve bits of resolution (4096 words or counts/turn) in a very small package. The four models share these features: Non-contact; frictionless; bi-directional rotation Maximum rotating speed: 30,000 RPM Protection: IP64 standard (IP 68 optional) Shock: 1000 m/s ; 6 ms (non-operating) Vibration: 100 m/s @ 55 to 2000 Hz 36-mm body; blind hollow-shaft Weight: Encoder with 1m cable (no connector) 85 grams, magnet carrier 12 grams Gurley Series M136 Magnetic Rotary Encoders Series: M136 PowerSupply:PowerConsumption:Resolution:Hysteresis:Accuracy:Repeatability:Outputsignals:Datainputs:Max.Cablelength:Connector:Temp.Range:MaxSpeed:PowerSupply:PowerConsumption:OutputTTLsignals:Resolution(max):Accuracy:Max.cablelength:Connector:Temp.Range:Edgeseparationtime:Max.Speed:5VDC35mAmax.12bits(4096words/turn)0.20.30.1bitSerialdata(RS422)-naturalbinaryClock(RS422)100m(at1MHz)DE-9Porpigtails-25Cto85C18000rpm@4096,otherwise20000rpmOO≤5VDC35mAA,B,I,/A,/B,/I,(RS422)4096counts/rev.(afterquadraturedecode)+/-0.3deg.20mDE-9P-25Cto85C1-secminimum10000rpm@4096,otherwise20000rpm Dia.: 0.86" 22mm Max. Accuracy: 2048 Max. Resolution: 8192 (Counts/Rev.) Notes: Compact Magnetic Encoder
