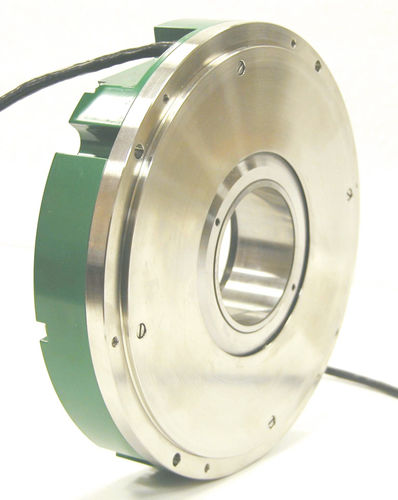

Incremental angle encoder 9480H
hollow-shaftstainless steelshock resistant

incremental angle encoder
incremental angle encoder
incremental angle encoder
incremental angle encoder
Add to favorites
Compare this product


Characteristics

Type
incremental
Construction
hollow-shaft
Material
stainless steel
Protection level
shock resistant, vibration-resistant, robust
Applications
industrial
Other characteristics
high-accuracy, high-resolution
Housing diameter

203 mm
(7.99 in)

Description

Model 9480H angle encoders are durable encoders of metrology-grade. These are equally useful for different industrial applications. It integrates four reading heads to reduce the common errors of the encoders. The unit features stainless steel construction that has great resistance against shock and vibration. It is designed for the accurate placement of the rotary tables on the machine tools and synchronizes the measuring machines, divide the equipment, antennas, test gear and different similar devices. The 9480H integrates an internal ASIC (application specific integrated circuit) to produce quadrature square wave up to 100 times the line count on the disc. Thus, the declaration (after 4X quadrature assessment by the user) can be as well as 0.18 arcsec (0.00005°, or 7,200,000 counts per revolution). The Series 9480H is a robust metrology-grade encoder that is equally well-suited for industrial applications. It incorporates four reading heads to eliminate many common sources of encoder errors, while its stainless steel construction greatly enhances resistance to shock and vibration.It is designed for very precise positioning of rotary tables on machine tools, coordinate measuring machines, dividing apparatus, antennas, test equipment and similar devices.The 9480H incorporates an internal ASIC (application-specific integrated circuit) to generate quadrature square waves up to 100 times the line count on the disc. Thus, the resolution (after o4X quadrature evaluation by the user) can
