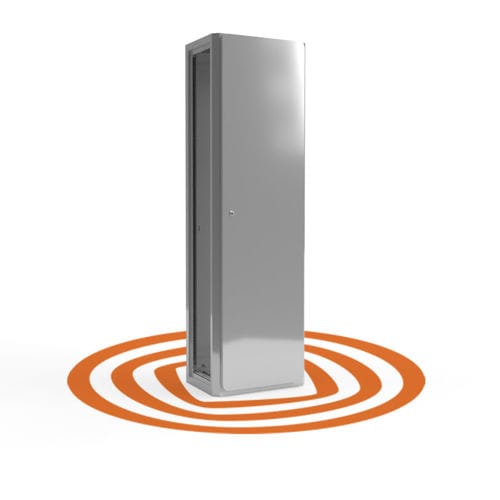

Free-standing electric cabinet RHL series

stainless steelindustrialmodular

Protective ground connection according to DIN EN 61439-1, M8x20 mm bolts in top, bottom, door and side panel. Mounting plate with drilled holes Base mounting: 4 or 6 holes 10.5 mm /0.41” diam Hinged door: Externally mounted, at right side. Edges rounded, 30 mm/1.18“ radius Lock: 3 mm double mandrel lock with safety latch and locking bars. Internal hinges with 110° opening angle Bolted reinforcement frame made of resistant square tubes with two additional cross strut with attachment holes 4,5 mm/0.18“ with 25 mm/0.98“ hole pattern. Closed top Cable entry: bottom with 4 cable entry plates flush mounted, attachment from inside. Modular assembly: Via flange element or quick connector attachment to perforated frame. Technical data • Article number:0450-6016-40-00 • Protective conductor connection:according to DIN EN 61439-1 • Material:Stainless steel no. 1.4301 • Weight:76 kg • Cabinet type:Sanitary Cabinet • Variant:without mounting plate Notice • Option: Version in V4A material no. 1.4571, or sheet steel. • Surface finish: externally brushed, grain 300 or polished. • Door externally flush • with viewing window • Door hinged at left side • Swivel frame type 0318 with customized attachment kit • Cable entry in the roof • Intermediate dimensions • Partition panel • Price on request
