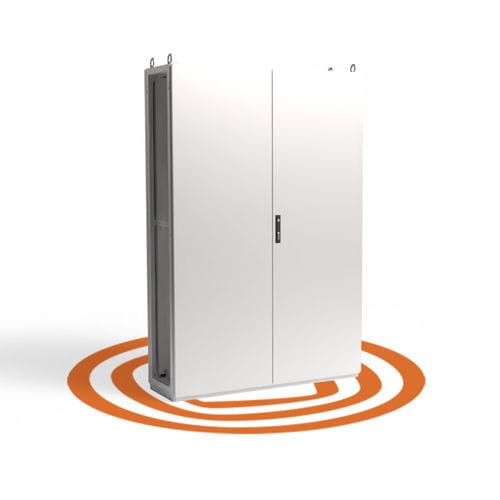

Free-standing electric cabinet 03 series

controlsheet steelstainless steel

Modular cabinets with single or double door design. Available with or without mounting plate. Protective grounding according to DIN EN 61439-1, M8x20 studs on all movable and detachable parts as well as on top and bottom frame areas, mounting plate with ground connector screw and cable entry plates with drilling. Flanged edges prevent dust and water from entering when opening the door Doors with seamlessly foamed gasket can be mounted either at left or right side, standard delivery includes doors hinged on right side, Opening angle 120° can be modified to 180°, Locking: Bar lock standard, with 3 mm double mandrel bolt, Bolted reinforcement and attachment frame of solid square tubes perforated with 4.5 mm holes every 25 mm, From width 800 mm with stop roller Top plate can be removed, with 4 lifting eyes M12 to DIN 580 Bottom with three-part, adjustable cable entry plate and 10.6 mm mounting holes. C-flanged mounting plate, adjustable to depth every 25 mm; quick and easy mounting with häwa locking brackets; continuous mounting surface in second rearmost position Technical data • Protection class:IP55 Type 1, 12 • Material:Stainless steel no. 1.4301 • Authorization:cULus • Cabinet type:Modular cabinets • Variant:without mounting plate • Surface:Externally brushed Notice • Rear side with hinged door or other modifications upon request. • Please refer to base drawings for base mounting dimensions. • IP56 is achieved when used together with enhancement kit type 0396-7056-01-00 for side panels.
