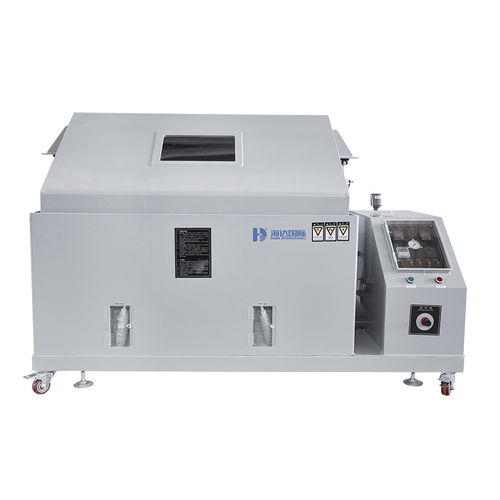

Salt Spray Test Chamber
Minimum1 SET
Delivery15 days after order.
ModelHD-E808
CountryChina
BrandNameHD
PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
PaymentL/C, D/P, T/T
PriceFOB, CIF
Product Description:
Salt Spray Test Chamber adapted to the surface treatment of various materials , including paint , electroplating , organic and inorganic coating , anode processing , antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products .
Standard Parameters:
Model HD-E808
Internal Size (L×W×H) 900x600x500mm
External Size (L×W×H) 1410x880x1280mm
Equipment Material Both inside & outside shell adopt P.V.C rigid plastic board
Temperature Range Room temperature ~ 55℃
Temperature Fluctuations ≤±0.5℃
Temperature Uniformity ≤±2℃
Temperature Precision ±1℃
Spraying method Continuous and Periodic spray type
Test Chamber Temperature
Salt Spray Method (NSS ACSS)35±1℃
Corrosion-resistant Testing Method (CASS) 50±1℃
Saturated air Barrel Temperature
Salt Spray Method (NSS ACSS)47±1℃
Corrosion-resistant Testing Method (CASS) 63±1℃
Brine Temperature 35℃±1℃
Spray Quantity 1.0~2.0 ml / 80cm2 / hr
PH value
Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
