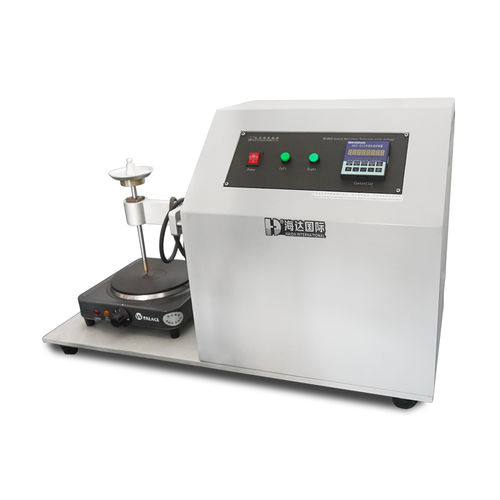

Scratch resistance testing machine HD-M009

motorizedmaterial

Scratch Resistance Tester (non stick surface) Minimum1 SET Delivery15 days after order. CountryChina BrandNameHD PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside. PaymentL/C, D/P, T/T PriceFOB, CIF APPLICATIONS& TEST PURPOSE: Fry pan or wok is put on the electric hotplate and the loaded stylus across the surface of cookware moves forward and backward with a certain speed (set in the standard). According to BS 7069 and EN12983, the horizontal reciprocating stoke is not less than 80mm in 1±0.1s. https://img.directindustry.com/images_di/2ai/visu-En.gif Non Stick Surface Cookware Testing Machine / Scratch Resistance Tester 0 DESIGN STANDARD: BS 7069 STANDARD FEATURES: Use a 1mm diameter tungsten carbide ball point pen as stylus Downward force - 5±0.1 N Speed - 0.08±0.01 m/s Hot plate - Diameter: 180±20 mm, 1500W Temperature controller - Temperature 0-400℃ (adjustable),accuracy:±2 ℃ Power - one phase, AC 220V, 50/60Hz
