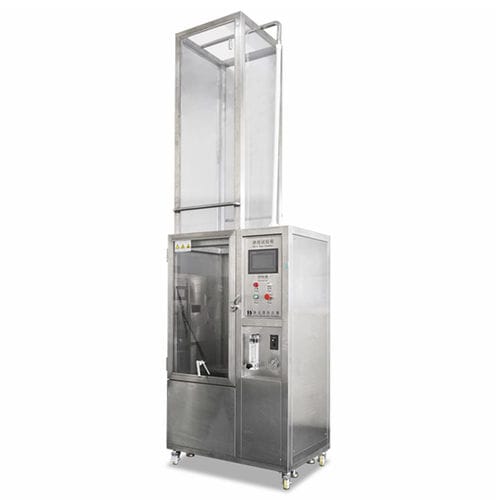

IPX56 waterproof climate chamber
Minimum1 SET
Delivery15 days after order.
CountryChina
BrandNameHD
PackageEach set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
PaymentL/C, D/P, T/T
PriceFOB, CIF
Generl Specifications
Packaging Dimensions: (W*D*H) 1600*1400*2000mm x 2
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 560kg
Usage:
IPX67 waterproof climate chamber is mainly suitable for outdoor lighting, outdoor lamps and lanterns, household appliances, communication products, the signal device and the automobile lamps and lanterns and other products to do test protection grade (IP waterproof level test).
Standard
EN60598、IEC60529-2001、GB4208-2008(IPX5、IPX6)
Applications& Features
1. To be used in testing external lighting and signal device and vehicle lamps shell protection.
2. Cyclic test includes conditions: heating, watering
3. The internal chamber has lighting device
4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.
Standard Features
Item Specification
Internal chamber size(W*D*H) 1000*1000*1000mm(can be customized)
External chamber size(W*D*H) 1400*1200*3500mm
