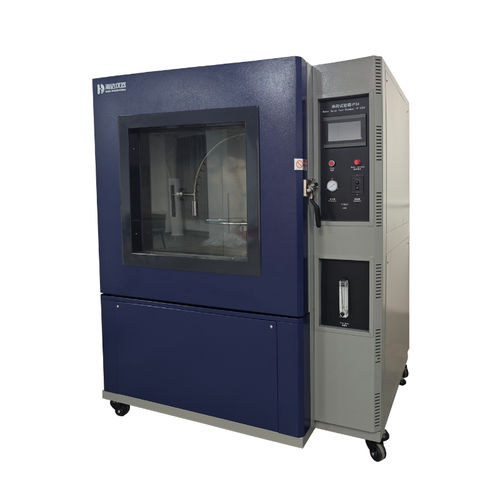

Ipx3 4 Water Spray Test Chamber
Minimum 1 SET
Delivery 15 days after order.
Country China
BrandName HD
Package Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Payment L/C, D/P, T/T
Price FOB, CIF
product introduce
Ipx3 4 Water Spray Test Chamber is suitable for electric and electronic products, materials, components, etc. in the rain, adaptability and reliability test under the temperature conditions. It can also be used for external lighting and signaling devices, and automotive lamps shell protection
STANDARD FEATURES
Item Specification
Internal dimension(W*D*H)1000*1000*1000mm
External dimension (W*D*H)1300*1100*1700mm
Oscillating tube Radius 400mm
Oscillating angle IPX3: spray ±60° from vertical line to each side, total 120°
IPX4: spray ±180° from vertical line to each side, total 360°
Oscillating speed IPX3: 2*120° for 4s
IPX4: 2*360° for 12s
Spray nozzle Diameter: 0.4mm, removable
Ensure the water sprays in a line and without tolerance
Distance between two nozzles 50mm
Turntable dimension 500mm
Turntable rotation speed 1-3 cycles/min
Water flow of each nozzle 0.07 L/min +5%
Test duration 1~999,999min, adjustable
Pressure gauge 80-150Kpa
Material Chamber - Stainless steel ; Spray nozzle - Brass
